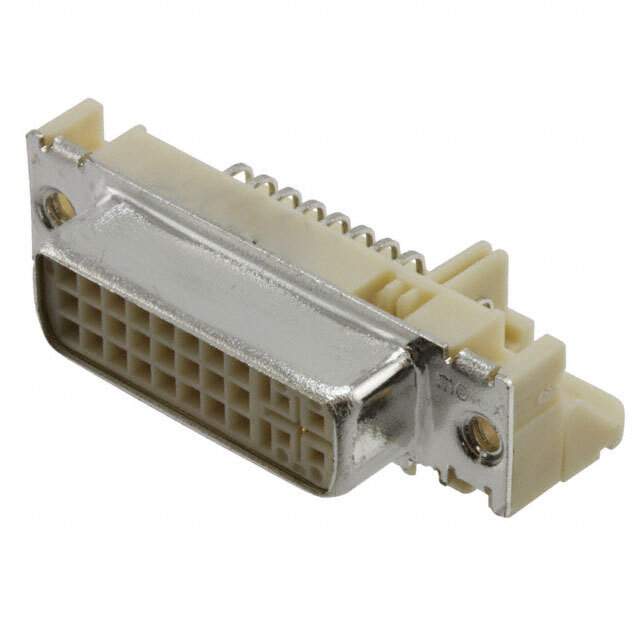

74320-1000 Real Image
Same model may have multiple batches, images only for reference.

74320-1000

Part No 74320-1000
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT 24POS RT ANGLE ANALOG
Datasheet
74320-1000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type DVI-I, Dual Link
Number of Contacts 29
Gender Receptacle
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Flange, Horizontal
Termination Solder
Features Board Guide
Temperature Range - Operating -20°C to 85°C
Number of Ports 1
Current Rating 3A per Contact
Voltage Rating 40VAC
Mating Cycles 100
Contact Finish Gold
Shell/Shielding Material Steel
Material Flammability Rating UL94 V-0
Insulation Color White
Win Source Part Number 197953-74320-1000
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 74320-1000 CAD Model

Description

Product Overview

The 74320-1000 offers unmatched reliability and efficiency, tailored to meet the demands of modern electronic projects. This component is known for its precision and durability.

Features and Benefits

  • Reliable performance with high precision.
  • Exceptional durability for long-lasting use.
  • Optimized design for enhanced compatibility.
  • Adheres to international standards.

Applications

  • Embedded systems
  • Military and aerospace applications
  • Smart home technologies
  • Automation systems

Engineered for high performance and reliability, the 74320-1000 is a top-tier component for ensuring project success in demanding environments.
