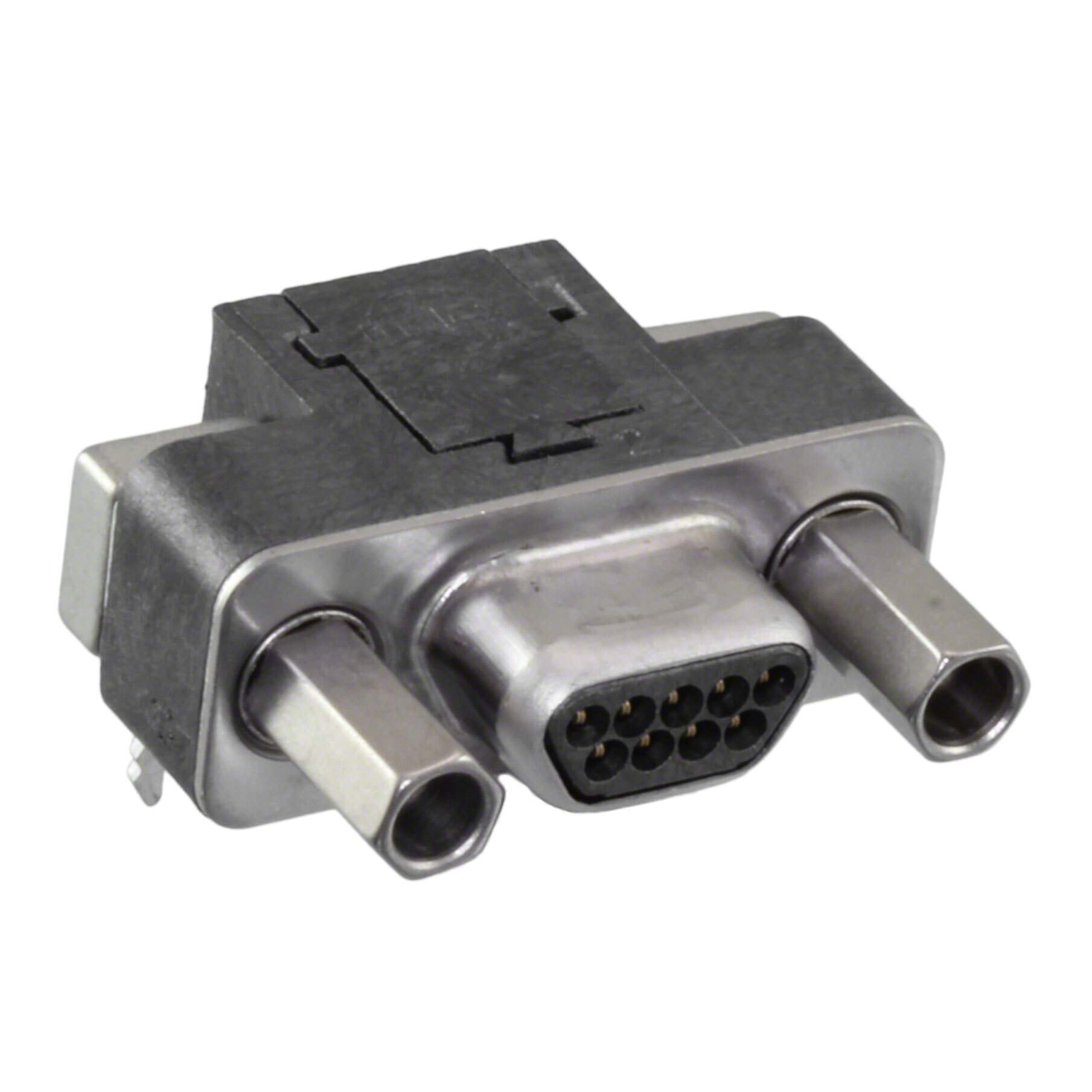

836119006 Real Image
Same model may have multiple batches, images only for reference.

836119006

Part No 836119006
Manufacturer Molex, LLC
Catalog D - SUB, D - SHAPED connectors
Description CONN MICRO-D PLUG 9POS R/A SLDR
Datasheet
836119006 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Commercial Micro-D Series 83611
Packaging Tube
Connector Style D-Type, Micro-D
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.050 Row to Row
Contact Type Signal
Mounting Panel Mount, Through Hole, Right Angle
Flange Feature Mating Side, Female Screwlock (2-56)
Termination Solder
Features Board Lock, Shielded
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 15μin (0.38μm)
Material Flammability Rating UL94 V-0
Operating Temperature Range -40°C ~ 125°C
Current Rating 1A
Housing Material Liquid Crystal Polymer (LCP)
Contact Material Copper Alloy
Win Source Part Number 766310-836119006
Popularity Medium
Supply and Demand Status Limited
Family Name 83611
Introduction Date September 22, 2009
ECCN EAR99
Country of Origin China, China, Mexico, Mexico, Mexico, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 836119006 CAD Model

Description

The Molex 766310-836119006 is a commercial micro-D series 83611 connector.

  • Positions: 9
  • Type: Plug with Male Pins
  • Features: Shielded, Board Lock
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Contact Finish: Gold
  • Contact Finish Thickness: 15μin (0.38μm)
  • Current Rating: 1A
  • Pitch: 0.050 pitch x 0.050 row to row
  • Mounting Style: Right Angle
