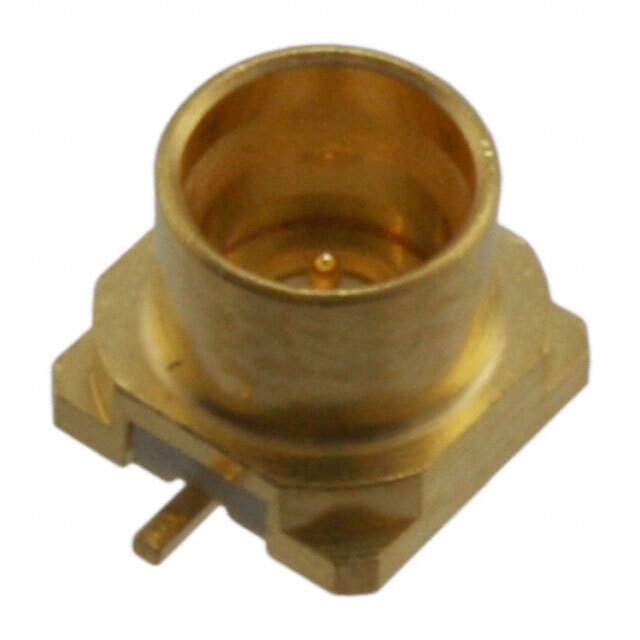

Same model may have multiple batches, images only for reference.

85305-0232

Name: 85305-0232
Brand: Molex, LLC
SKU: 1031457
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	85305-0232
Manufacturer	Molex, LLC
Catalog	Coaxial Connectors (RF)
Description	Conn Compression Coaxial 0Hz to 6GHz 50Ohm Solder ST SMD PL Bag
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Body Plating	Gold
Connector Type	Coaxial
Contact Material	Brass
Contact Plating	Gold
Country of Origin	TW
Frequency	40 GHz
Gender	Male
Halogen Free	Low Halogen
Height	4.23 mm
Impedance	50 Ω
Lead Free	Yes
Mount	Surface Mount
Number of Contacts	1
Orientation	Straight
Packaging	Bulk
Plating	Gold
REACH SVHC	Unknown
RoHS	Compliant
Termination	Solder
Voltage Rating	335 V
Win Source Part Number	1031457-85305-0232
Categories	Coaxial Connectors(RF)
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 85305-0232 CAD Model

Alternative Products

Description

This electronic component is a coaxial connector manufactured by Molex, LLC with a Win Source Part Number of 1031457-85305-0232.

Packaging: Bulk
Orientation: Straight
Voltage Rating: 335 V
Impedance: 50 Ω
Contact Material: Brass
Contact Plating: Gold
Frequency: 40 GHz
Height: 4.23 mm
Category: Coaxial Connectors (RF)
Alternative Parts: 1658260-1, 73415-3322, R222M00740W, 73415-2061, R113424000, 902-9040, 908-221010734156180, 0853050232, 73415-6180, 734156180, and 853050232
Halogen Content: Low
Lead-Free: Yes
Mounting Type: Surface Mountable
RoHS Compliant: Yes
REACH SVHC: Unknown
Supply and Demand Status: Limited
