Same model may have multiple batches, images only for reference.

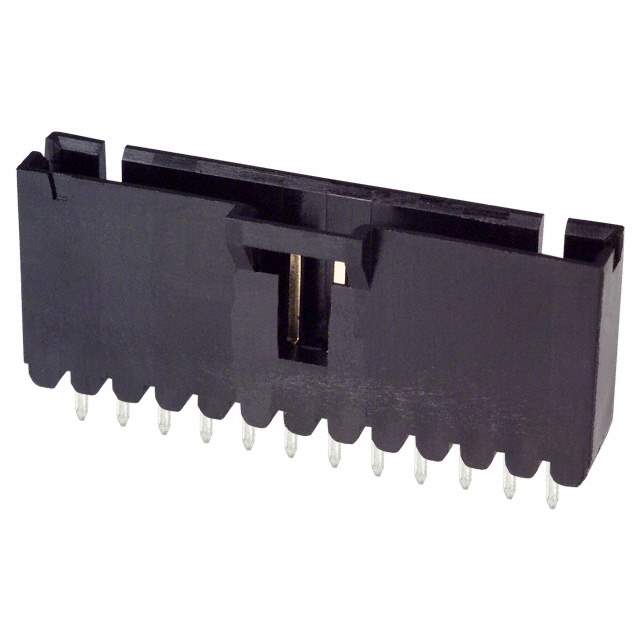

6-103735-1 Real Image
Same model may have multiple batches, images only for reference.

6-103735-1

Part No 6-103735-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2.54MM / Connector Header Through Hole 12 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.545" (13.84mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 103735
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 61037351,A33949
Standard Package 16
Win Source Part Number 1334563-6-103735-1
Ultra Librarian 3D Model Ultra Librarian 6-103735-1 CAD Model

Description

The TE Connectivity AMP Connectors 1334563-6-103735-1 is a male pin header connector with a keying slot.

  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Length-Mating: 0.230" (5.84mm)
  • Contact Finish-Mating: gold
  • Contact Finish Thickness-Mating: 30.0μin (0.76μm)
  • Contact Finish-Post: tin
  • Contact Finish Thickness-Post: 100.0μin (2.54μm)
  • Shrouding: Shrouded-4 wall
  • Contact Shape: Square
  • Temperature Range for Operation: -65°C to 105°C
  • Current Rating: 3A
  • Series: 103735
  • RoHS Compliant: Yes
