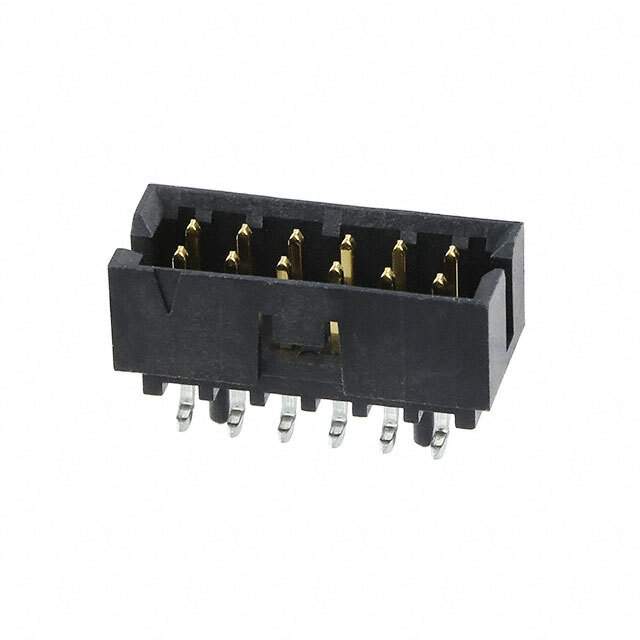

87832-5522 Real Image
Same model may have multiple batches, images only for reference.

87832-5522

Part No 87832-5522
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header HDR 12 POS 2mm Solder ST SMD Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Material Bronze
Contact Mating Length 3.5814 mm
Contact Plating Gold
Country of Origin SG
Current Rating 2 A
Depth 6.3 mm
Housing Color Black
Housing Material Nylon
Length 14.65 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Circuits 10
Number of Contacts 12
Number of Positions 12
Number of Rows 2
Orientation Vertical
Pitch 2 mm
Plating Tin
RoHS Compliant
Row Spacing 2.0066 mm
Termination Solder
Win Source Part Number 989901-87832-5522
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 87832-5522 CAD Model

Description

The Molex 989901-87832-5522 is a circular connector housing with a male pin connector type.

  • Number of Positions: 12
  • Number of Contacts: 12
  • Pitch: 2 mm
  • Row Spacing: 2.0066 mm
  • Contact Material: Bronze
  • Housing Material: Nylon
  • Orientation: Vertical
  • Contact Plating: Gold
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -55 °C
  • RoHS Compliant: Yes
  • Depth: 6.3 mm
