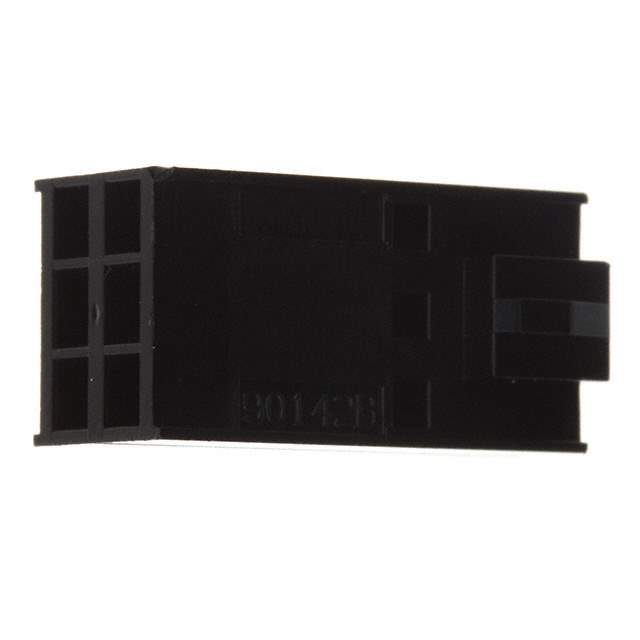

Same model may have multiple batches, images only for reference.

90142-0006

Name: 90142-0006
Brand: Molex, LLC
SKU: 1000010
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	90142-0006
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Receptacle Connector 250V AC 3A 6P 2 Row Free-Hanging Mount Nylon - GF Black
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Gender	Female
Contact Resistance	20 mΩ
Country of Origin	SG
Current Rating	3 A
Depth	15.24 mm
Flammability Rating	UL94 V-0
Gender	Receptacle
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Housing Color	Black
Housing Material	PPO
Insulation Resistance	5 GΩ
Lead Free	Yes
Lead Pitch	2.54 mm
Length	7.62 mm
Material	Polyphenylene
Maximum Operating Temperature	105 °C
Max Voltage Rating (DC)	350.35 kV
Min Operating Temperature	-55 °C
Mount	Cable
Number of Circuits	32
Number of Contacts	6
Number of Pins	6
Number of Positions	6
Number of Rows	2
Orientation	Right Angle
Packaging	Bulk
Pitch	2.54 mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536695050
Termination	Crimp
Voltage Rating	350 V
Voltage Rating (AC)	350 V
Width	7.72 mm
Win Source Part Number	1000010-90142-0006
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 90142-0006 CAD Model

Alternative Products

Description

The Molex LLC 1000010-90142-0006 is a black 6-position female circular connector housing.

Positions: 6
Type: Female
Shape: Circular
Pitch: 2.54 mm
Termination: Crimp
Voltage Rating: 350 V
Current Rating: 3 A
Contact Material: Polyphenylene
Contact Resistance: 20 mΩ
Housing Material: PPO
Depth: 15.24 mm
RoHS Compliant: Yes
Maximum Operating Temperature: 105 °C
Mounting: Cable
Width: 7.72 mm
Category: Circular connector-housings
Part of: 87631-2, 90123-0106, 90327-0306, 3-640441-6, 3-640442-6, 3-640440-6, 502351-05000901420006, 901-42-0006, 901420006
