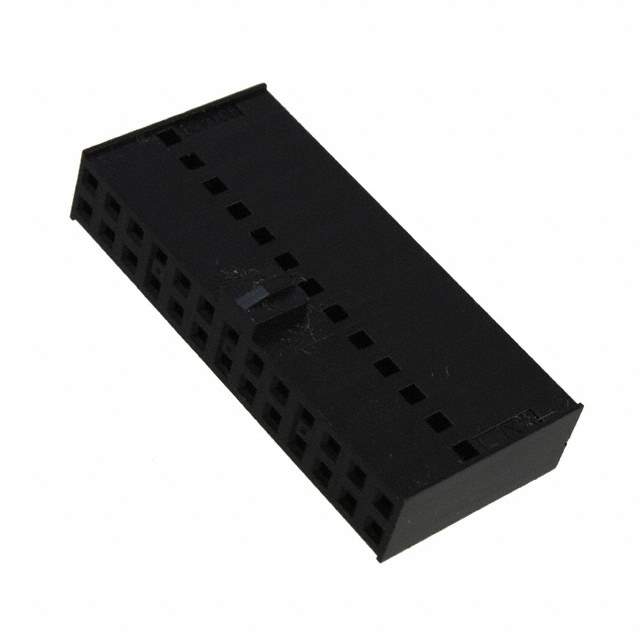

90142-0030 Real Image
Same model may have multiple batches, images only for reference.

90142-0030

Part No 90142-0030
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 2.54mm Pitch C-Grid III Crimp Housing Dual Row, 30 Circuits, Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Female
Contact Resistance 20 mΩ
Country of Origin SG
Current Rating 3 A
Depth 15.24 mm
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Black
Housing Material PPO
Insulation Resistance 5 GΩ
Lead Free Lead Free
Lead Pitch 2.54 mm
Length 38.1 mm
Material Polyphenylene
Max Operating Temperature 105 °C
Max Voltage Rating (DC) 350.35 kV
Min Operating Temperature -55 °C
Mount Cable
Number of Contacts 30
Number of Pins 30
Number of Positions 30
Number of Rows 2
Orientation Straight
Packaging Bulk
Pitch 2.54 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination Crimp
Voltage Rating 350 V
Voltage Rating (AC) 350 V
Width 7.72 mm
Win Source Part Number 1124073-90142-0030
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 90142-0030 CAD Model

Description

The Molex, LLC 1124073-90142-0030 is a high-quality electronic component suitable for various applications.

  • Positions: 30
  • Pitch: 2.54mm
  • Rows: two
  • Termination: crimp
  • Voltage Rating: 350V
  • Current Rating: 3A
  • Gender: receptacle
  • Length: 38.1mm
  • Housing Material: PPO
  • Orientation: straight
  • Housing Color: black
  • Contact Resistance: 20 mΩ
  • Number of Pins: 30
  • Contact Gender: female
  • Width: 7.72mm
  • Insulation Resistance: 5 GΩ
