Same model may have multiple batches, images only for reference.

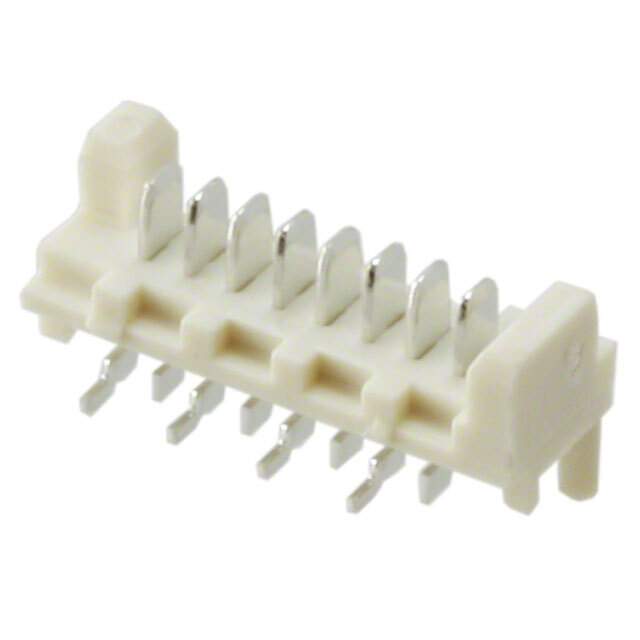

90814-0208 Real Image
Same model may have multiple batches, images only for reference.

90814-0208

Part No 90814-0208
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Ribbon Cable Connector HDR 8 POS 2.54mm Solder ST SMD Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Male
Contact Material Brass
Contact Plating Tin
Contact Resistance 15 mΩ
Country of Origin SG
Current Rating 1.2 A
Depth 6.9 mm
Gender Male
Glow Wire Compliant Non-compliant
Housing Color Beige
Housing Material Nylon
Lead Pitch 1.27 mm
Length 13.94 mm
Max Operating Temperature 105 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 250 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 8
Number of Contacts 8
Number of Positions 8
Number of Rows 1
Orientation Vertical
Packaging Tape and Reel
Pitch 2.54 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 250 V
Win Source Part Number 1135763-90814-0208
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 90814-0208 CAD Model

Description

The 1135763-90814-0208 electronic component is manufactured by Molex, LLC.

  • Type: Male Connector
  • Positions: 8
  • Pitch: 2.54 mm
  • Material: High-quality brass
  • Voltage Rating: 250 V
  • Current Rating: 1.2 A
  • RoHS Compliant: Yes
