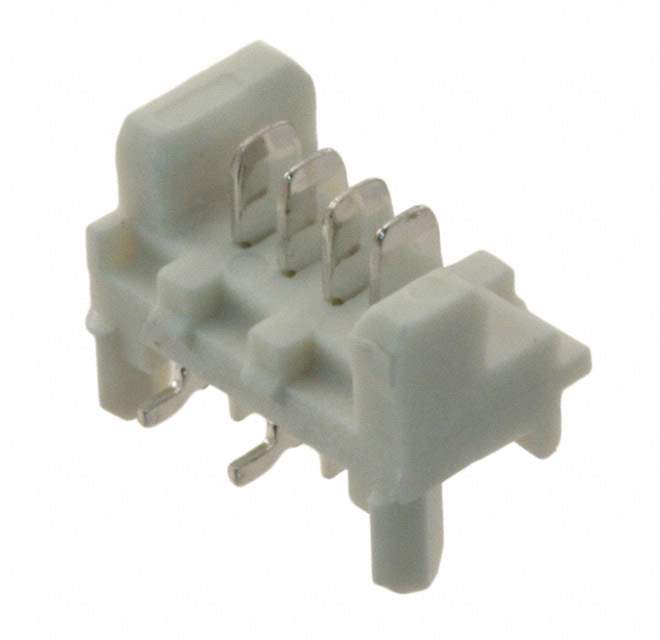

90814-0804 Real Image
Same model may have multiple batches, images only for reference.

90814-0804

Part No 90814-0804
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Ribbon Cable Connector RCP 12 POS 1.27mm Solder ST SMD Reel
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0804
Color Natural
Connector Type Blade Pin
Contact Material Brass
Contact Mating Length 2.159 mm
Contact Plating Tin
Contact Resistance 15 mΩ
Country of Origin MY
Current Rating 2.4 A
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Thermoplastic
Lead Pitch 1.27 mm
Maximum Operating Temperature 105 °C
Max Voltage Rating (DC) 250.25 kV
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 4
Number of Contacts 4
Number of Pins 4
Number of Positions 4
Number of Rows 1
Orientation Vertical
Pitch 1.27 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Voltage Rating 250 V
Win Source Part Number 1005052-90814-0804
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 90814-0804 CAD Model

Description

The Molex LLC 1005052-90814-0804 is a natural 4-position male circular connector housing.

  • Color: Natural
  • Positions: 4
  • Type: Male
  • Shape: Circular
  • Housing Type: Connector Housing
  • Pitch: 1.27 mm
  • Mounting Type: Surface Mounted
  • Contact Mating Length: 2.159 mm
  • Current Rating: 2.4 A
  • Contact Material: Brass
  • Contact Plating: Tin
  • Housing Material: Thermoplastic
  • Connector Plating: Tin
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 105 °C
  • Category: Circular connector-housings
  • Part of: 8-2823056-2, 90814-0204, 93405-0504, 90814-3904, 1775443-5, DF57H-4P-1.2V(21), 292231-30908140804, 908140804
