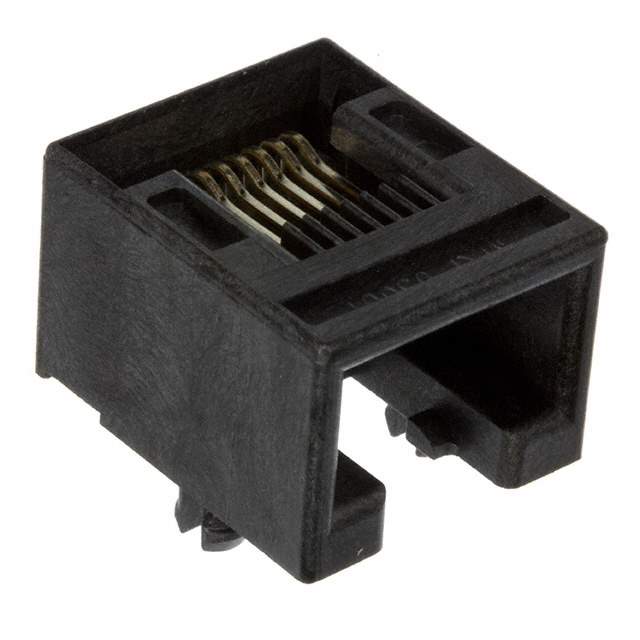

95501-6889 Real Image
Same model may have multiple batches, images only for reference.

95501-6889

Part No 95501-6889
Manufacturer Molex, LLC
Catalog Modular Connectors
Description Conn RJ-45 F 8 POS 1.02mm Solder RA SMD 8 Terminal 1 Port Cat 3 Box/Package/Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type RJ45
Contact Material Bronze
Contact Plating Gold
Country of Origin IE
Current Rating 1.5 A
Depth 18.1 mm
Gender Female
Halogen Free Low Halogen
Housing Material Thermoplastic
Length 15.24 mm
Maximum Operating Temperature 80 °C
Max Voltage Rating (DC) 125 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Contacts 8
Number of Ports 1
Number of Positions 8
Orientation Right Angle
Pitch 1.27 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Shielding Unshielded
Termination SMD/SMT
Voltage Rating 125 V
Win Source Part Number 1041758-95501-6889
Categories Modular Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 95501-6889 CAD Model

Description

The Molex 1041758-95501-6889 is a female connector with 8 positions and a pitch of 1.27mm. The color of the connector is black and it is an RJ45 type.

  • Product Name: Molex 1041758-95501-6889
  • Manufacturer: Molex
  • Positions: 8
  • Pitch: 1.27mm
  • Color: Black
  • Connector Type: RJ45
  • Termination: SMD/SMT
  • Contact Material: Bronze
  • Voltage Rating: 125V
  • Current Rating: 1.5A
  • Contacts: 8
  • Shielded: Unshielded
  • Housing Material: Thermoplastic
  • Orientation: Right angle
  • Contact Plating: Gold
  • Plating: Tin
  • Ports: 1
  • Category: Modular connectors
  • Alternative Parts (Cross-Reference): 5555764-1, 44144-0003, 43743-8101, 85513-50130955016889, 95501-6889 ., 95501-6889., and 955016889
  • Country of Origin: IE
  • Halogen: Low halogen
  • Supply and Demand Status: Currently experiencing a shortage
  • Maximum Operating Temperature: 80°C
  • Minimum Operating Temperature: -40°C
  • Depth: 18.1mm
  • Mounting: Surface mountable
  • RoHS Compliant: RoHS compliant
  • Radiation Hardened: Not radiation hardened
