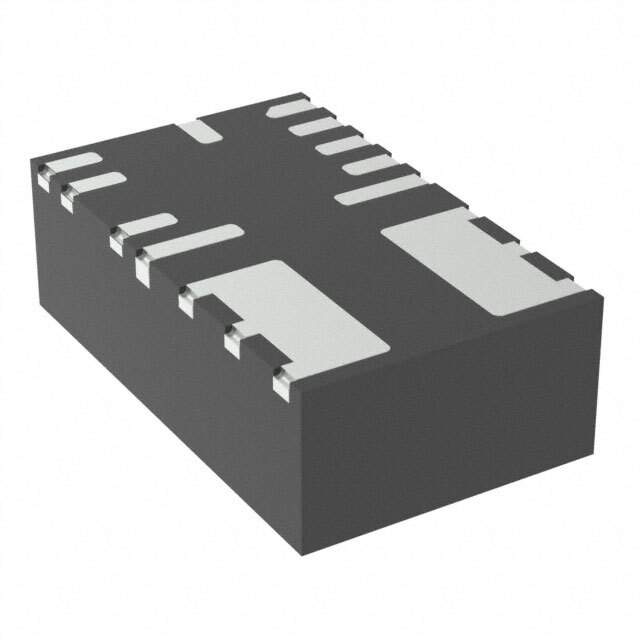

MPM3515GQVE-AEC1-P Real Image
Same model may have multiple batches, images only for reference.

MPM3515GQVE-AEC1-P

Part No MPM3515GQVE-AEC1-P
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.8-30V / Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 30V 1.5A 4V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Monolithic Power Systems Inc.
Series Automotive, AEC-Q100
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4V
Voltage - Input (Max) 36V
Voltage - Output 1 0.8 ~ 30V
Current - Output (Max) 1.5A
Applications ITE (Commercial)
Features OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount, Wettable Flank
Package / Case 17-PowerLQFN Module
Size / Dimension 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm)
Supplier Device Package 17-QFN (3x5)
Base Product Number MPM3515
Standard Package 500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1351251-MPM3515GQVE-AEC1-P
Ultra Librarian 3D Model Ultra Librarian MPM3515GQVE-AEC1-P CAD Model

Description

The MPM3515GQVE-AEC1-P is a non-isolated Point of Load (PoL) module that is designed for power supplies from Monolithic Power Systems Inc.

  • Type: DC DC Converter
  • Output: One
  • Maximum Output Current: 1.5A
  • Voltage Input Range: 4V to 36V
  • Voltage Output Range: 0.8V to 30V
  • Features: Over Current Protection (OCP), Over Temperature Protection (OTP), Under Voltage Lockout (UVLO)
  • Package: 17-PowerLQFN Module
  • Mounting Type: Surface Mount or Wettable Flank
  • Operating Temperature: -40°C to 125°C
  • Series: Automotive, AEC-Q100
  • Packaging: Tape and Reel
