Same model may have multiple batches, images only for reference.

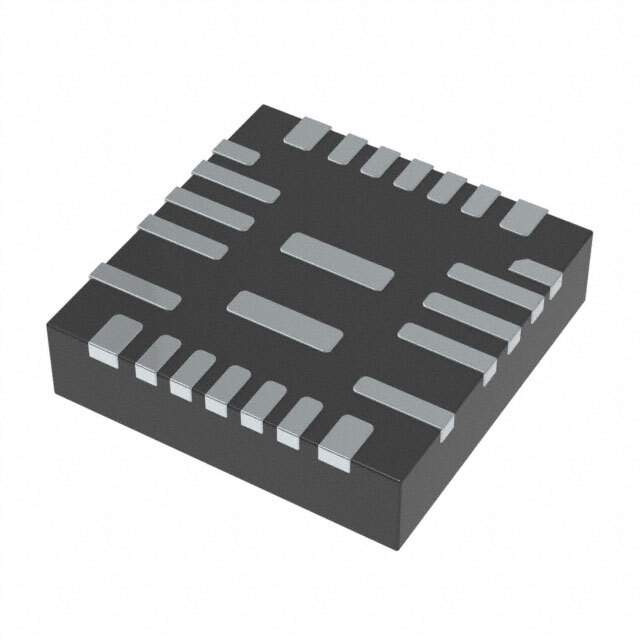

MP2496MGR-Z Real Image
Same model may have multiple batches, images only for reference.

MP2496MGR-Z

Part No MP2496MGR-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Features Non-Isolated PoL Module DC DC Converter 1 Output 5V - - - 2.5A 7V - 36V Input
Manufacturer Monolithic Power Systems Inc.
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package 26-PowerVFQFN
Case / Package 26-QFN (4x4)
Family Name MP2496
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1589-1598-2, 1589-1598-6, MP2496MGR-Z-ND, 1589-1598-1
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 885598-MP2496MGR-Z
Ultra Librarian 3D Model Ultra Librarian MP2496MGR-Z CAD Model

Description

The MP2496MGR-Z is a non-isolated PoL module DC DC converter with 1 output.

  • Input Voltage: 7V to 36V
  • Output Voltage: 5V
  • Output Current (Max): 2.5A
  • Operating Temperature: -40°C to 125°C
  • Package: 26-PowerVFQFN
  • Mounting: Surface Mount
  • Status: Not for new designs
  • Family Name: MP2496
  • Category: Power Supplies - Board Mount
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • Package Quantity: 5000 units
  • MSL Level: 1 (unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8504.40.9580
  • Other Part Numbers: 1589-1598-2, 1589-1598-6, MP2496MGR-Z-ND, 1589-1598-1
