Same model may have multiple batches, images only for reference.

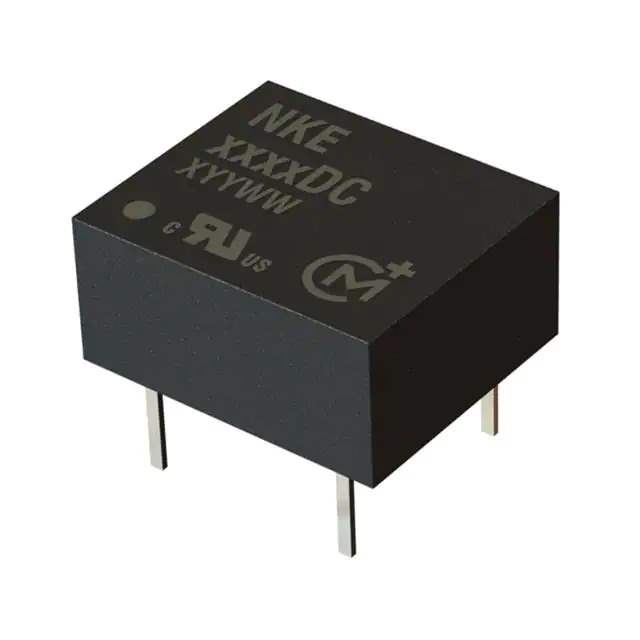

NKE0505DC Real Image
Same model may have multiple batches, images only for reference.

NKE0505DC

Part No NKE0505DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NKE (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 69%
Mounting Type Through Hole
Package / Case 8-DIP Module, 4 Leads
Size / Dimension 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm)
Base Product Number NKE05
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648818-NKE0505DC
Ultra Librarian 3D Model Ultra Librarian NKE0505DC CAD Model

Description

The NKE0505DC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc. It is part of the NKE series and is designed for power supplies in board mount applications.

  • Voltage Isolation: 3 kV
  • Maximum Output Current: 200mA
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 5V
  • Efficiency: 69%
  • Package: 8-DIP module with 4 leads
  • Mounting Type: Through hole
  • Operating Temperature Range: -40°C to 85°C
  • Applications: ITE (Commercial)
  • Standard Package: 40 pcs
