Same model may have multiple batches, images only for reference.

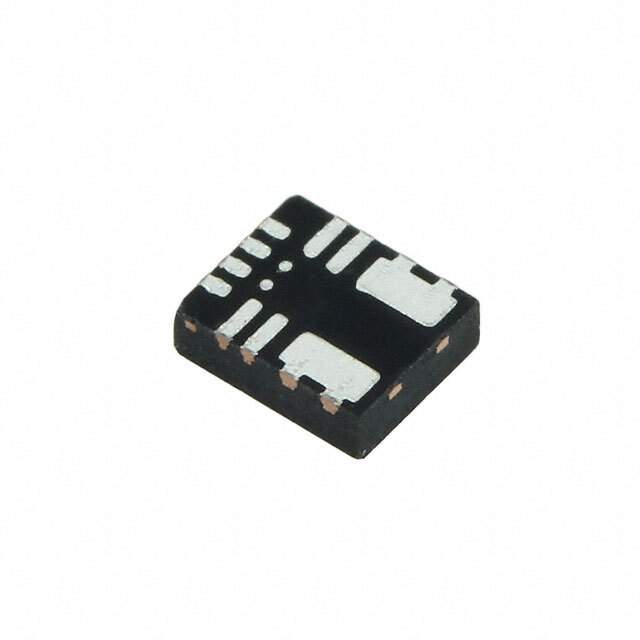

MPM3805GQB-33-Z Real Image
Same model may have multiple batches, images only for reference.

MPM3805GQB-33-Z

Part No MPM3805GQB-33-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 0.6A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Monolithic Power Systems Inc.
Packaging Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.5V
Maximum Input Voltage 6V
Voltage - Output 1 3.3V
Current - Output (Maximum) 600mA
Applications ITE (Commercial)
Features OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 12-PowerVFQFN Module
Dimension 0.12" L x 0.10" W x 0.04" H (3.0mm x 2.5mm x 0.9mm)
Supplier Device Package 12-QFN (3x2.5)
Control Features Enable, Active High
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801025-MPM3805GQB-33-Z
Ultra Librarian 3D Model Ultra Librarian MPM3805GQB-33-Z CAD Model

Description

The MPM3805GQB-33-Z is a non-isolated PoL module manufactured by Monolithic Power Systems Inc.

  • Supplier Device Package: 12-QFN (3x2.5)
  • Dimensions: 0.12" L x 0.10" W x 0.04" H (3.0mm x 2.5mm x 0.9mm)
  • Maximum Input Voltage: 6V
  • Voltage Output: 3.3V
  • Maximum Current Output: 600mA
  • Features: OCP, OTP, UVLO
  • Enable Control: Active High
  • Applications: ITE (Commercial)
  • Operating Temperature: -40°C to 125°C
  • Packaging: Reel
  • Manufacturer Pack Quantity: 5,000
