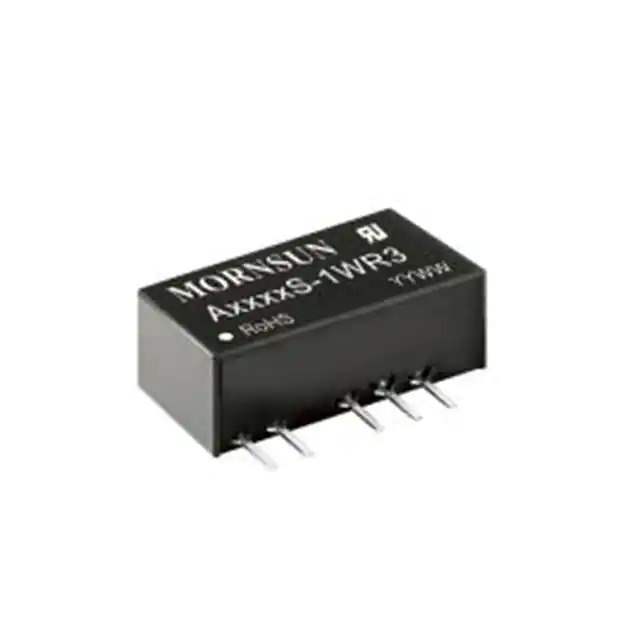

A0505S-1WR3 Real Image A0505S-1WR3 Real Image
Same model may have multiple batches, images only for reference.
A0505S-1WR3 Real Image A0505S-1WR3 Real Image
A0505S-1WR3 Real Image A0505S-1WR3 Real Image
Same model may have multiple batches, images only for reference.

A0505S-1WR3

Part No A0505S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series A_S-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Approval Agency CB, CE, cURus
Base Product Number A0505S
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 848730-A0505S-1WR3
Ultra Librarian 3D Model Ultra Librarian A0505S-1WR3 CAD Model

Description

The A0505S-1WR3 is a 1W DC/DC converter from MORNSUN Science & Technology Ltd. A0505S-1WR3 is manufactured by MORNSUN Science & Technology Ltd..

  • Type: Isolated Module
  • Number of Outputs: 2
  • Voltage - Input (Min): 4.5V
  • Voltage - Input (Max): 5.5V
  • Voltage - Output 1: 5V
  • Voltage - Output 2: -5V
  • Current - Output (Max): 100mA
  • Power (Watts): 1W
  • Efficiency: 82%
  • Mounting Type: Through Hole
  • Size / Dimension: 0.77" L x 0.24" W x 0.40" H
  • Operating Temperature: -40°C ~ 105°C (With Derating)
  • Applications: ITE (Commercial)
  • Approvals: CB, CE, cURus
  • Series: A_S-1WR3
