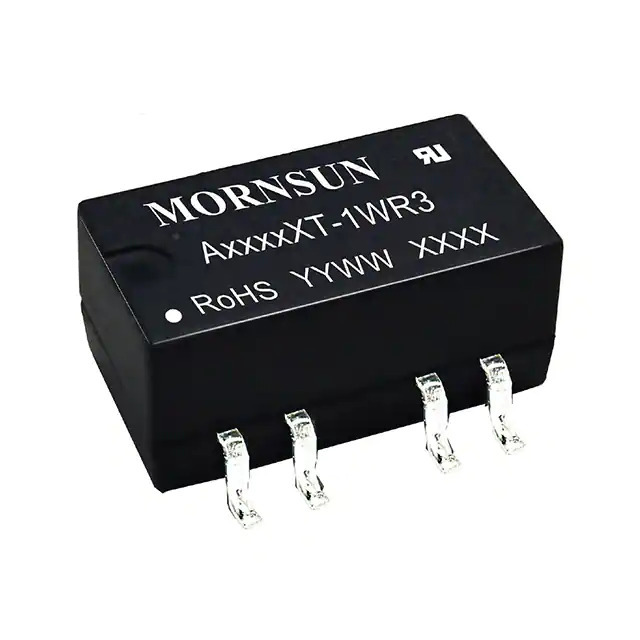

A2405XT-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

A2405XT-1WR3

Part No A2405XT-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series A_XT-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 82%
Mounting Type Surface Mount
Package / Case 10-SMD Module, 6 Leads
Size / Dimension 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1373026-A2405XT-1WR3
Ultra Librarian 3D Model Ultra Librarian A2405XT-1WR3 CAD Model

Description

The A2405XT-1WR3 is a 1W isolated module DC-DC converter from Mornsun America, LLC.

  • Application: Power supply applications in commercial information technology equipment (ITE)
  • Input Voltage: 21.6V to 26.4V
  • Outputs: 5V and -5V
  • Efficiency: 82%
  • Maximum Output Current: 100mA for each output
  • Package: 10-SMD package with 6 leads
  • Mounting: Surface
  • Voltage Isolation: 1.5kV
  • Operating Temperature: -40°C to 105°C
  • Product Status: Active
  • MSL Level: Not applicable
  • REACH: Compliant
  • ECCN: EAR99
