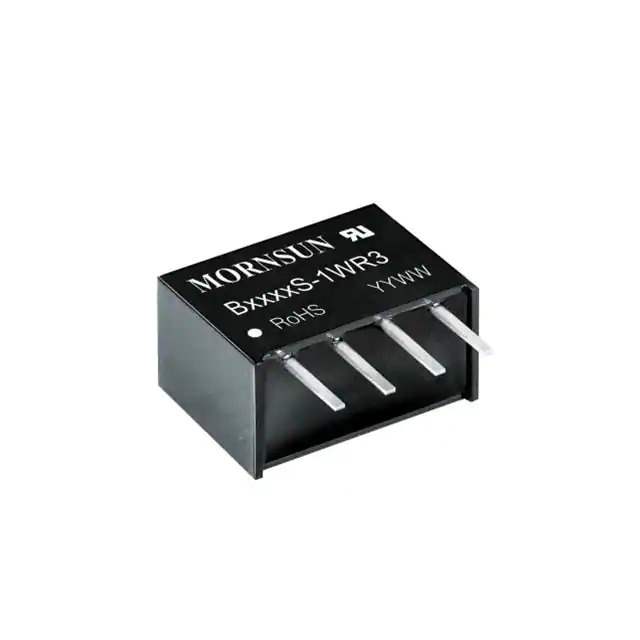

B0505S-1WR3

Part No B0505S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series B_S-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 82%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm)
Approval Agency CE, cURus
Base Product Number B0505S
Standard Package 43 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 848790-B0505S-1WR3
Ultra Librarian 3D Model Ultra Librarian B0505S-1WR3 CAD Model

Description

The B_S-1WR3 is a 1W isolated module power supply from MORNSUN Science & Technology Ltd. It is part of the B_S-1WR3 series and does not have any specific features listed. The package size is 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) and it is designed for ITE (Commercial) applications. With a voltage isolation of 3 kV, this power supply has a single output with a maximum current of 200mA. The input voltage range is 4.5V to 5.5V, and the output voltage is 5V. The efficiency of this power supply is 82% and it is mounted through hole. It comes in a 4-SIP module package and has a temperature range of -40°C to 105°C (With Derating). The B_S-1WR3 is an active product with CE and cURus approval.
