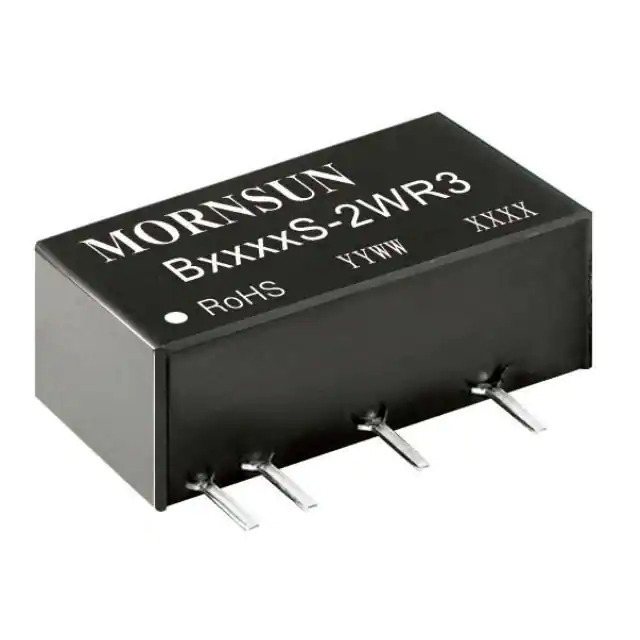

Same model may have multiple batches, images only for reference.

B0515S-2WR3

Get a Quote

Part No	B0515S-2WR3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 2W / Isolated Module DC DC Converter 1 Output 15V 133mA 4.5V - 5.5V Input
Sample
Rohs State	Need to verify
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Mornsun America, LLC
Series	B0515S-2WR3 (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	15V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	133mA
Power (Watts)	1.9 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	-
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	86%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Supplier Device Package	-
Control Features	-
Approval Agency	-
Standard Number	-
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1372754-B0515S-2WR3
Ultra Librarian 3D Model	Ultra Librarian B0515S-2WR3 CAD Model

Alternative Products

Description

The B0515S-2WR3 is a 2W isolated module DC/DC converter designed for board mount applications manufactured by Mornsun America, LLC.

Output Type: Isolated
Voltage - Output 1: 15V
Current - Output (Max): 133mA
Voltage - Input (Min): 4.5V
Voltage - Input (Max): 5.5V
Power (Watts): 1.9W
Efficiency: 86%
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 105°C (With Derating)
Mounting Type: Through Hole
Package / Case: 7-SIP Module, 4 Leads
Size / Dimension: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
