Same model may have multiple batches, images only for reference.

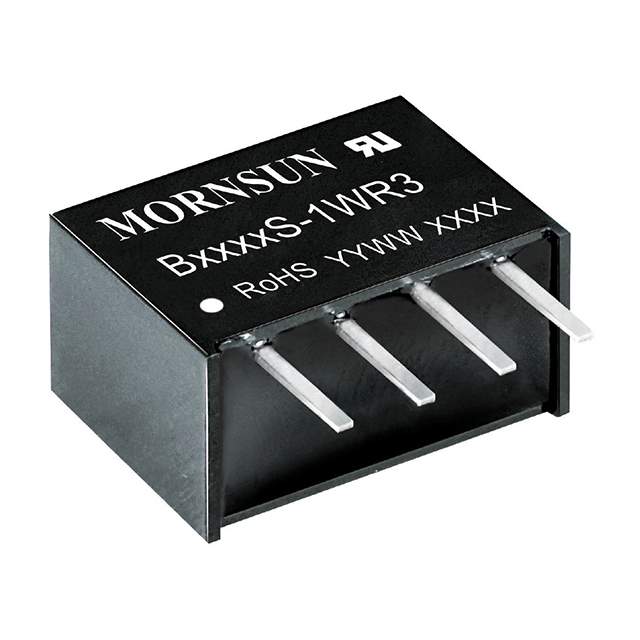

B1505S-1WR3 Real Image
Same model may have multiple batches, images only for reference.

B1505S-1WR3

Part No B1505S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 7 Weeks
Features Isolated Module DC DC Converter Output 5V - - - 200mA 13.5V - 16.5V Input
Manufacturer MORNSUN Science& Technology Ltd.
Series B_S-1WR3 (1W)
Package Tube
Operating Temperature Range -40°C ~ 105°C (With Derating)
Mounting Through Hole
Package 4-SIP Module
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Quantity per package 43
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 862931-B1505S-1WR3
Ultra Librarian 3D Model Ultra Librarian B1505S-1WR3 CAD Model

Description

The B_S-1WR3 (1W) is an isolated module DC-DC converter designed to provide a 5V output with a maximum input of 200mA from MORNSUN.

  • Output: 5V
  • Maximum Input: 200mA
  • Series: B_S-1WR3 series
  • Package: 4-SIP module
  • Mounting: Through a hole
  • Category: Power supply board mount
  • ECCN: EAR99
  • Popularity: Medium
  • Package Quantity: 43
  • MSL Level: None
  • Estimated Production Lead Time: 7 weeks
  • HTSUS Code: 8504.40.9580
