Same model may have multiple batches, images only for reference.

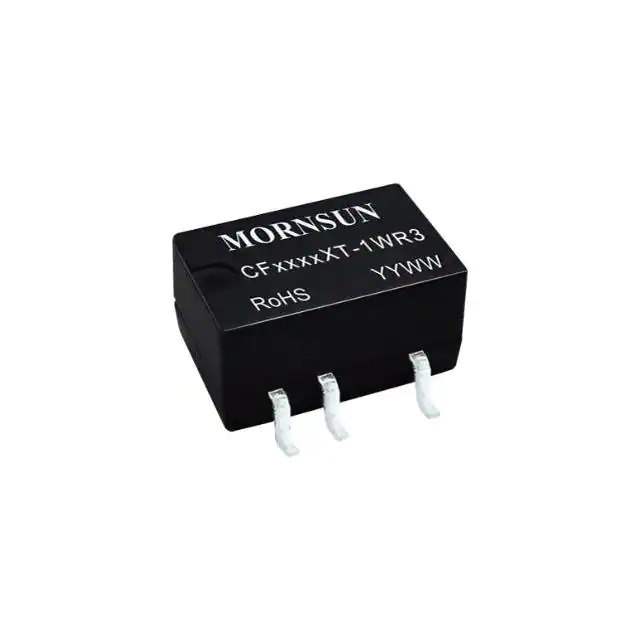

CF0505XT-1WR3 Real Image
Same model may have multiple batches, images only for reference.

CF0505XT-1WR3

Part No CF0505XT-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series CF0505XT-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 82%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Approval Agency CE, EN, UKCA
Standard Number 62368-1
Standard Package 38 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 995631-CF0505XT-1WR3
Ultra Librarian 3D Model Ultra Librarian CF0505XT-1WR3 CAD Model

Description

The CF0505XT-1WR3 is an isolated module DC/DC converter from MORNSUN Science & Technology Ltd. MORNSUN Science & Technology Ltd. is the manufacturer.

  • Series: CF0505XT-1WR3
  • Application: ITE (Commercial)
  • Power Output: 1W
  • Maximum Output Current: 200mA
  • Input Voltage Range: 4.5V to 5.5V
  • Voltage Output: 5V
  • Package: 8-SMD module
  • Dimensions: 0.52" L x 0.33" W x 0.29" H
  • Efficiency: 82%
  • Temperature Range: -40°C to 105°C with derating
  • Approvals: CE, EN, and UKCA
