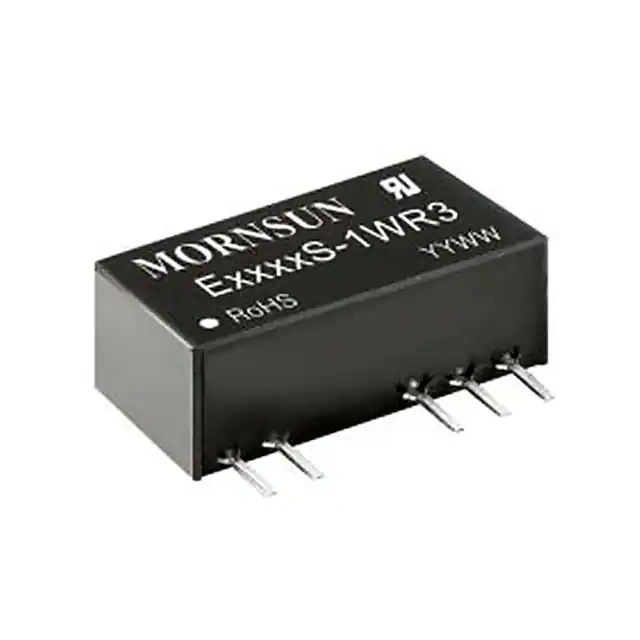

E0509S-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

E0509S-1WR3

Part No E0509S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 1W
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series E_S-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 56mA, 56mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus
Base Product Number E0509S
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372914-E0509S-1WR3
Ultra Librarian 3D Model Ultra Librarian E0509S-1WR3 CAD Model

Description

The 1372914-E0509S-1WR3 is a power supply module from Mornsun America, LLC.

  • Series: E_S-1WR3
  • Power (Watts): 1W
  • Voltage - Input (Min): 4.5V
  • Voltage - Input (Max): 5.5V
  • Voltage - Output 1: 9V
  • Voltage - Output 2: -9V
  • Current - Output (Max): 56mA
  • Applications: ITE (Commercial)
  • Mounting Type: Through Hole
  • Package / Case: 7-SIP Module
  • Number of Leads: 5
  • Size / Dimension: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
  • Approval Agency: CB, CE, cURus
  • Voltage - Isolation: 3 kV
  • Efficiency: 83%
  • REACH Status: Unaffected
