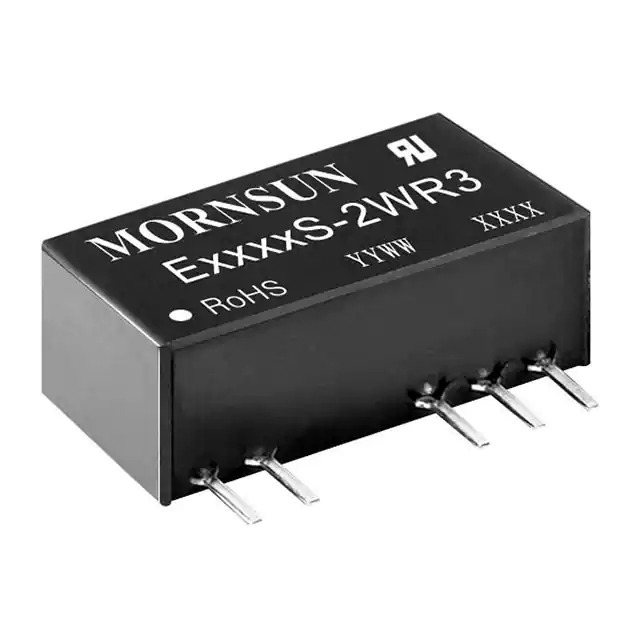

Same model may have multiple batches, images only for reference.
E2415S-2WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

E2415S-2WR3

Part No E2415S-2WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 21.6V - 26.4V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series E_S-2WR3 (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 67mA, 67mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1373135-E2415S-2WR3
Ultra Librarian 3D Model Ultra Librarian E2415S-2WR3 CAD Model

Description

The 1373135-E2415S-2WR3 is a power supply module designed for board mount DC-DC converters from Mornsun America, LLC.

  • Series: E_S-2WR3
  • Operating Temperature: -40°C to 105°C
  • Maximum Output Current: 67mA
  • Power (Watts): 2W
  • Number of Outputs: 2
  • Voltage - Output: 15V, -15V
  • Efficiency: 83%
  • Isolation: 3kV
  • Package / Case: 7-SIP Module, 5 Leads
  • Mounting Type: Through Hole
  • Approvals: CB, CE, cURus, and UL
  • Size / Dimension: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
  • Application: ITE (Commercial)
