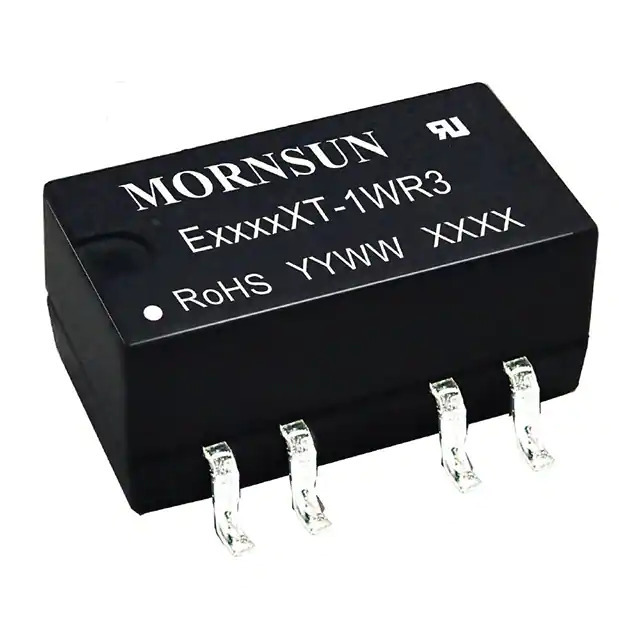

Same model may have multiple batches, images only for reference.

E2424XT-1WR3

Get a Quote

Part No	E2424XT-1WR3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-24V 1W
Sample
Rohs State	Need to verify
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Mornsun America, LLC
Series	E_XT-1WR3 (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	24V
Voltage - Output 2	-24V
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	21mA, 21mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	-
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	85%
Mounting Type	Surface Mount
Package / Case	10-SMD Module, 6 Leads
Size / Dimension	0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Supplier Device Package	-
Control Features	-
Approval Agency	CB, CE, cURus, UL
Standard Number	62368-1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1372896-E2424XT-1WR3
Ultra Librarian 3D Model	Ultra Librarian E2424XT-1WR3 CAD Model

Alternative Products

Description

The E2424XT-1WR3 (1W) is an isolated module power supply from Mornsun America, LLC.

Package: 10-SMD module with 6 leads
Mounting: surface mount mounting
Input Voltage Range: 21.6V to 26.4V
Outputs: 24V and -24V
Maximum Output Current: 21mA
Power: 1W
Voltage Isolation: 3kV
Efficiency: 85%
Suitable for: applications in ITE (Commercial)
Operating Temperature: -40°C to 105°C
REACH: unaffected
ECCN: EAR99
Control Features: no specific control features
Product Status: active product
Approvals: CB, CE, cURus, and UL
