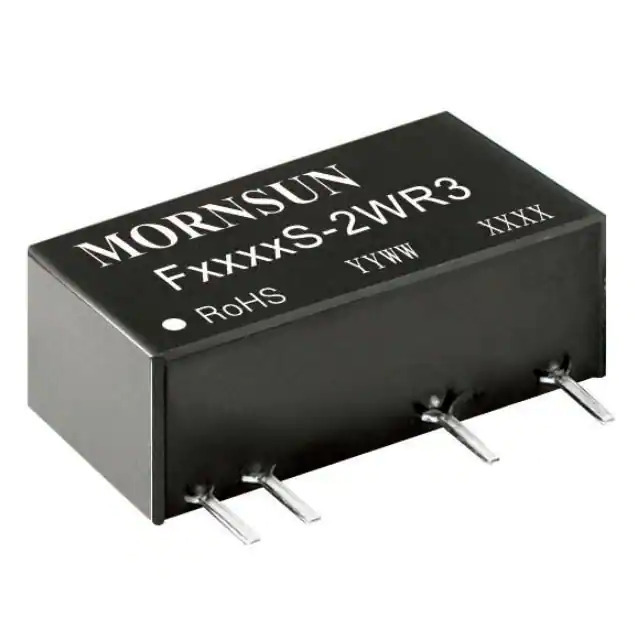

Same model may have multiple batches, images only for reference.
F0505S-2WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

F0505S-2WR3

Part No F0505S-2WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 5.5V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series F0505S-2WR3 (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 84%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency -
Standard Number -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372708-F0505S-2WR3
Ultra Librarian 3D Model Ultra Librarian F0505S-2WR3 CAD Model

Description

The 1372708-F0505S-2WR3 is a DC-DC converter from Mornsun America, LLC. It is part of the F0505S-2WR3 (2W) series.

  • Package: 7-SIP module with 4 leads
  • Mounting Type: through-hole
  • Operating Temperature: -40°C to 105°C (with derating)
  • Input Voltage: 4.5V to 5.5V
  • Output Voltage: 5V
  • Maximum Output Current: 400mA
  • Power Rating: 2W
  • Efficiency: 84%
  • Voltage Isolation: 3 kV
  • Application: ITE (commercial)
  • Size: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
  • REACH: unaffected
  • ECCN: EAR99
