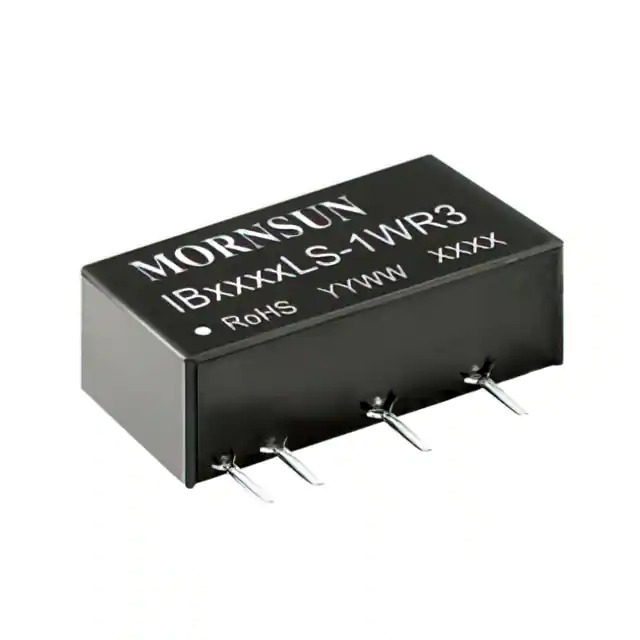

Same model may have multiple batches, images only for reference.
IB2412LS-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

IB2412LS-1WR3

Part No IB2412LS-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER / Isolated Module DC DC Converter 1 Output 12V 83mA 22.8V - 25.2V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series IB_LS-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 22.8V
Voltage - Input (Max) 25.2V
Voltage - Output 1 12V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 83mA
Power (Watts) 996 mW
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 73%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1356969-IB2412LS-1WR3
Ultra Librarian 3D Model Ultra Librarian IB2412LS-1WR3 CAD Model

Description

The IB2412LS-1WR3 is a 1W isolated module DC-DC converter manufactured by Mornsun America, LLC.

  • Series: IB_LS-1WR3
  • Application: Power Supplies for ITE (Commercial)
  • Operating Temperature Range: -40°C to 85°C (with derating)
  • Output Current: 83mA (max)
  • Power Rating: 996mW
  • Input Voltage Range: 22.8V to 25.2V
  • Output Voltage: 12V
  • Voltage Isolation: 1.5kV
  • Efficiency: 73%
  • Mounting Type: Through Hole
  • Package: 7-SIP module with 4 leads
  • Approvals: CB, CE, cURus
  • Safety Standard: UL
  • Product Status: Active
