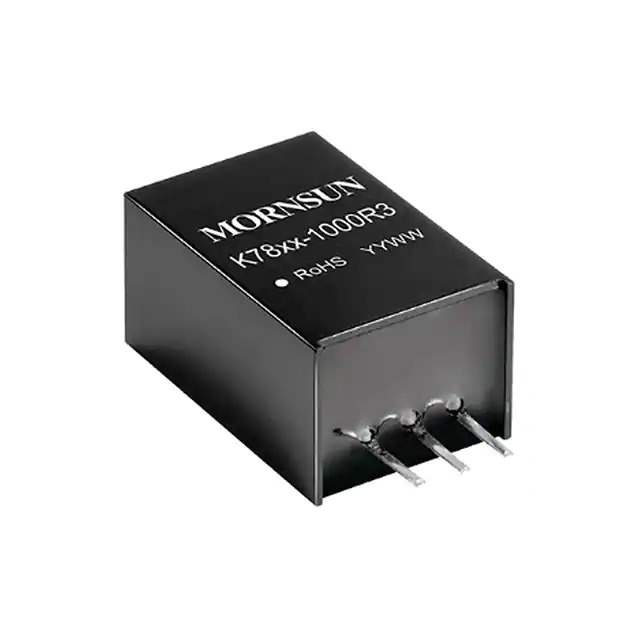

K7803-1000R3 Real Image
Same model may have multiple batches, images only for reference.

K7803-1000R3

Part No K7803-1000R3
Catalog Power Supplies Board Mount DCDC Converters
Description LINEAR REGULATOR REPLACEMENT DC
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series K7803-1000R3
Package Tube
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 6V
Voltage - Input (Max) 36V
Voltage - Output 1 3.3V
Current - Output (Max) 1A
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
Approval Agency CB, CE, cURus, UL
Standard Number 60950-1; 62368-1
Standard Package 44 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1007567-K7803-1000R3
Ultra Librarian 3D Model Ultra Librarian K7803-1000R3 CAD Model

Description

The K7803-1000R3 is a non-isolated PoL (Point of Load) module designed for board mount applications.

  • Type: Non-Isolated PoL Module
  • Application: Board Mount, ITE (Commercial)
  • Size: 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
  • Output: Single
  • Maximum Current: 1A
  • Voltage Output: 3.3V
  • Input Voltage Range: 6V to 36V
  • Efficiency: 90%
  • Mounting Type: Through-Hole
  • Package: 3-SIP
  • Manufacturer: MORNSUN Science & Technology Ltd.
  • Approvals: CB, CE, cURus, and UL
