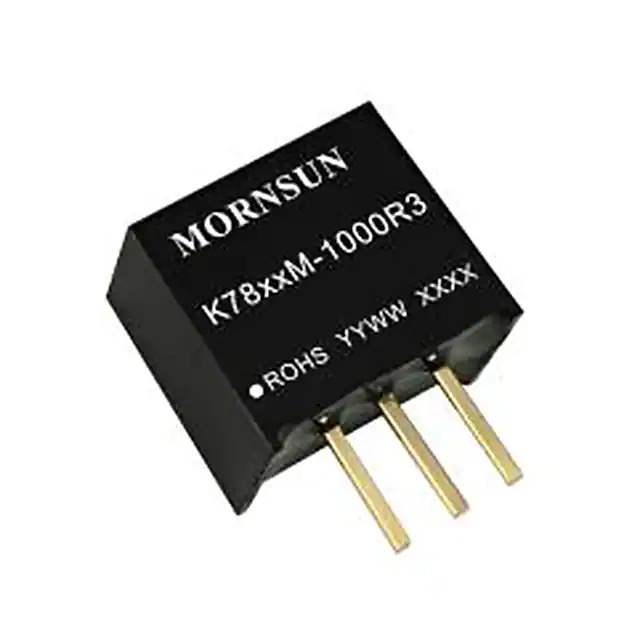

Same model may have multiple batches, images only for reference.

K7805M-1000R3

Name: K7805M-1000R3
Brand: default
SKU: 876306
Availability: InStock
Rating: 4.77 (3 reviews)

Get a Quote

Part No	K7805M-1000R3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 7.5W / Non-Isolated PoL Module DC DC Converter 2 Output ±5V 1A, 500mA 8V - 36V, 27V Input
Sample
Rohs State
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	MORNSUN Science& Technology Ltd.
Series	K7805M-1000R3
Package	Tube
Product Status	Active
Type	Non-Isolated PoL Module
Number of Outputs	2
Voltage - Input (Min)	8V
Voltage - Input (Max)	36V, 27V
Voltage - Output 1	±5V
Current - Output (Max)	1A, 500mA
Power (Watts)	7.5 W
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	93%
Mounting Type	Through Hole
Package / Case	3-SIP Module
Size / Dimension	0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm)
Approval Agency	CE
Base Product Number	K7805
Standard Package	43 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	876306-K7805M-1000R3
Ultra Librarian 3D Model	Ultra Librarian K7805M-1000R3 CAD Model

Alternative Products

Description

The K7805M-1000R3 is a non-isolated PoL (Point of Load) module in the category of board mount DC-DC converters.

Application: ITE (Commercial) power supplies
Features: Short-Circuit Protection (SCP)
Size: 0.46" L x 0.31" W x 0.41" H
Outputs: Two, ±5V
Output Current: 1A and 500mA respectively
Input Voltage: 8V to 36V
Efficiency: 93%
