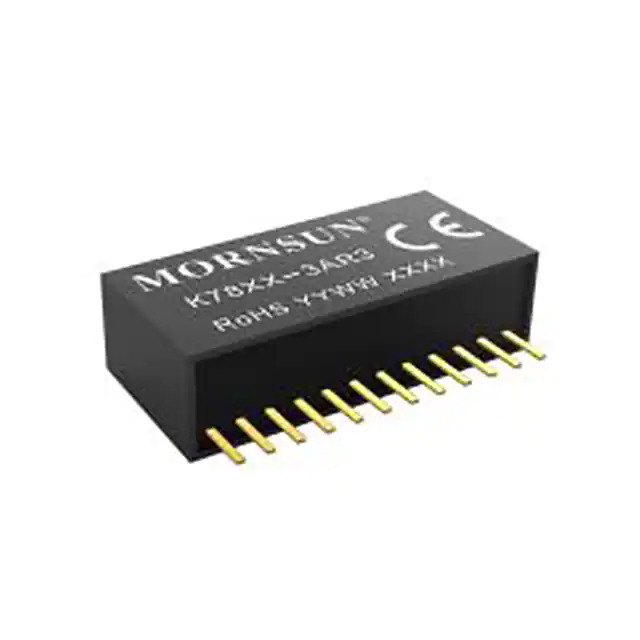

K7809-3AR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

K7809-3AR3

Part No K7809-3AR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 27W
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series K7809-3AR3
Package Tube
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 13V
Voltage - Input (Max) 36V
Voltage - Output 1 9V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 3A
Power (Watts) 27 W
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 95%
Mounting Type Through Hole
Package / Case 12-SIP Module
Size / Dimension 1.27" L x 0.36" W x 0.58" H (32.2mm x 9.1mm x 14.9mm)
Supplier Device Package -
Control Features -
Approval Agency CE
Base Product Number K7809
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372825-K7809-3AR3
Ultra Librarian 3D Model Ultra Librarian K7809-3AR3 CAD Model

Description

The 1372825-K7809-3AR3 is a DC-DC converter from Mornsun America, LLC.

  • Series: K7809-3AR3
  • Package: 12-SIP module
  • Output Current: 3A (Maximum)
  • Power: 27W
  • Input Voltage: 13V to 36V
  • Output Voltage: 9V
  • Efficiency: 95%
  • Features: SCP (Short Circuit Protection)
  • Approvals: CE
  • Operating Temperature: -40°C to 85°C
  • Size: 1.27" L x 0.36" W x 0.58" H
  • REACH: Unaffected
