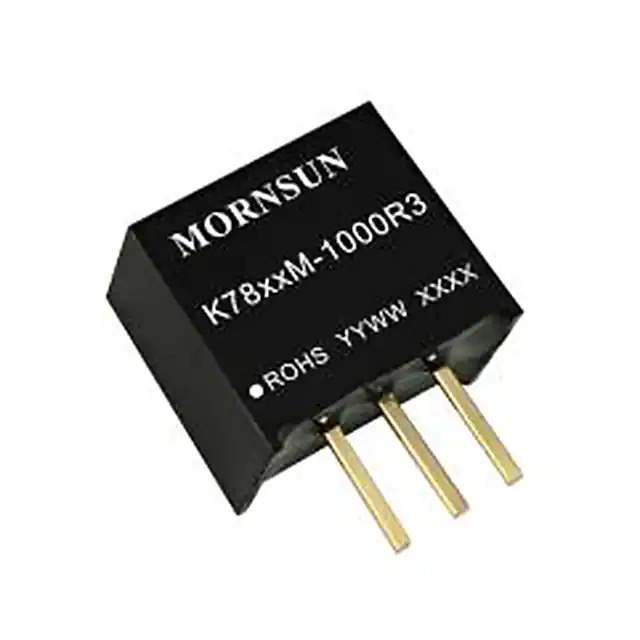

K7815-500R3 Real Image
Same model may have multiple batches, images only for reference.

K7815-500R3

Part No K7815-500R3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 9.8W / Linear Regulator Replacement DC DC Converter 1 Output 15V, -15V 500mA, 150mA 8V, 19V - 21V, 36V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series K7815-500R3
Package Tube
Product Status Active
Type Linear Regulator Replacement
Number of Outputs 1
Voltage - Input (Min) 8V, 19V
Voltage - Input (Max) 21V, 36V
Voltage - Output 1 15V, -15V
Current - Output (Max) 500mA, 150mA
Power (Watts) 9.8 W
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 95%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm)
Approval Agency CB, CE, cURus
Base Product Number K7815
Standard Package 43 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 848474-K7815-500R3
Ultra Librarian 3D Model Ultra Librarian K7815-500R3 CAD Model

Description

The 848474-K7815-500R3 is a linear regulator replacement module manufactured by MORNSUN Science & Technology Ltd.

  • Series: K7815-500R3
  • Type: linear regulator replacement
  • Feature: Short Circuit Protection (SCP)
  • Size: 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm)
  • Application: ITE (Commercial)
  • Outputs: single output
  • Maximum Output Current: 500mA
  • Input Voltage Range: 8V to 21V
  • Output Voltages: 15V and -15V
  • Efficiency: 95%
  • Mounting: through-hole
  • Package: 3-SIP module
  • Operating Temperature Range: -40°C to 85°C
  • Approvals: CB, CE, and cURus
  • Status: active
