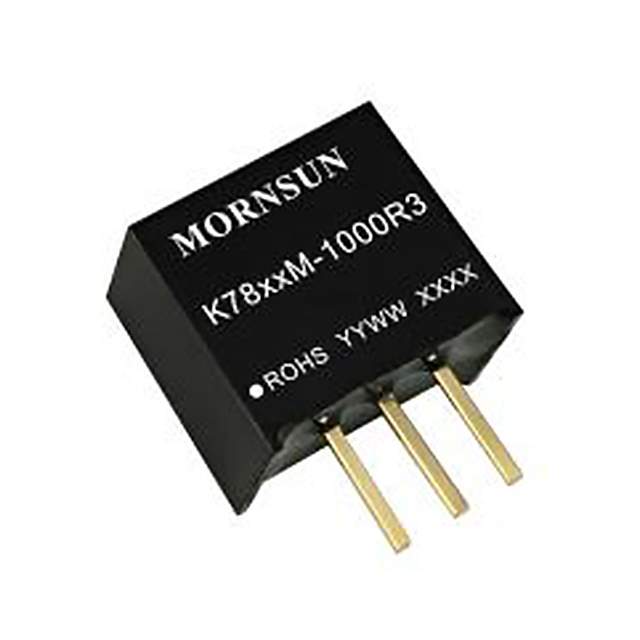

K7815M-1000R3 Real Image
Same model may have multiple batches, images only for reference.

K7815M-1000R3

Part No K7815M-1000R3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 20W  /  Non-Isolated PoL Module DC DC Converter 1 Output 15V, -15V 1A, 300mA 8V, 20V - 18V, 36V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Mornsun America, LLC
Series K7815M-1000R3
Package Tube
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 8V, 20V
Voltage - Input (Max) 18V, 36V
Voltage - Output 1 15V, -15V
Current - Output (Max) 1A, 300mA
Power (Watts) 20 W
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 88%
Mounting Type Through Hole
Package / Case 3-SIP Module
Dimension 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm)
Approval Agency CE
Base Product Number K7815
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names -2729-K7815M-1000R3,2725-K7815M-1000R3
Standard Package 43
Win Source Part Number 1207621-K7815M-1000R3
Ultra Librarian 3D Model Ultra Librarian K7815M-1000R3 CAD Model

Description

The K7815M-1000R3 is a non-isolated PoL module DC-DC converter from Mornsun America, LLC. Mornsun America, LLC K7815M-1000R3

  • Power Rating: 20 W
  • Features: SCP
  • Package: Tube
  • Standard Package: 43 units
  • Output: Single
  • Maximum Output Current: 1A or 300mA
  • Input Voltage Range: 8V to 18V or 20V to 36V
  • Output Voltage: 15V or -15V
  • Efficiency: 88%
  • Applications: ITE (Commercial)
  • Mounting Type: Through Hole
  • Package/Case: 3-SIP Module
  • Temperature Range: -40°C to 85°C (With Derating)
  • Dimensions: 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm)
  • Cross-Reference: K7815M1000R3
  • ECCN: EAR99
  • Approvals: CE
