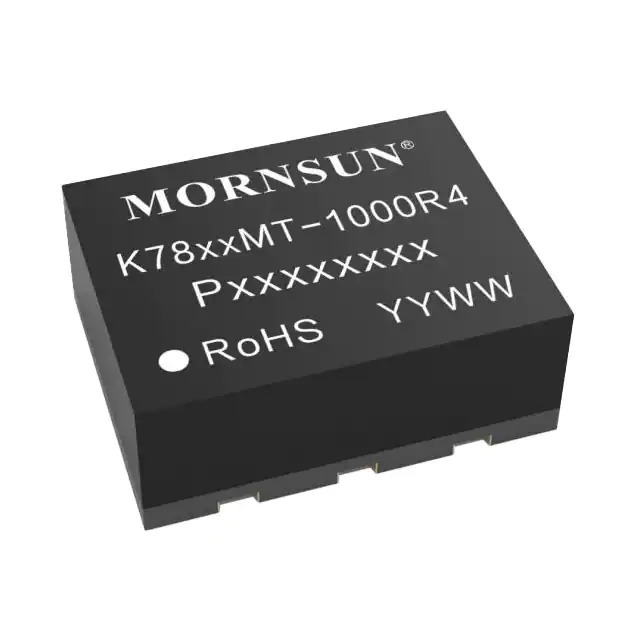

K78X6MT-1000R4 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

K78X6MT-1000R4

Part No K78X6MT-1000R4
Catalog Power Supplies Board Mount DCDC Converters
Description LINEAR REGULATOR REPLACEMENT DC
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series K78_MT-1000R4
Package Tape & Reel
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 2
Voltage - Input (Min) 8V
Voltage - Input (Max) 36V
Voltage - Output 1 6.5V
Voltage - Output 2 -6.5V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 1A, 500mA
Power (Watts) 9.75 W
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 92%
Mounting Type Surface Mount
Package / Case 6-SMD Module
Size / Dimension 0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm)
Supplier Device Package -
Control Features -
Approval Agency CE, EN
Standard Number 62368-1
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372664-K78X6MT-1000R4
Ultra Librarian 3D Model Ultra Librarian K78X6MT-1000R4 CAD Model

Description

The 1372664-K78X6MT-1000R4 is a DC-DC converter from the K78_MT-1000R4 series manufactured by Mornsun America, LLC.

  • Series: K78_MT-1000R4
  • Package: 6-SMD Module
  • Topology: Non-Isolated PoL
  • Output: Adjustable
  • Application: ITE (Commercial)
  • Output Current (Max): 1A
  • Power Rating: 9.75W
  • Input Voltage: 8V to 36V
  • Output Voltages: 6.5V and -6.5V
  • Efficiency: 92%
  • Approvals: CE, EN
  • Size (L x W x H): 0.35" L x 0.28" W x 0.12" H
  • Operating Temperature: -40°C to 105°C (with derating)
  • Product Status: Active
  • REACH: Unaffected
