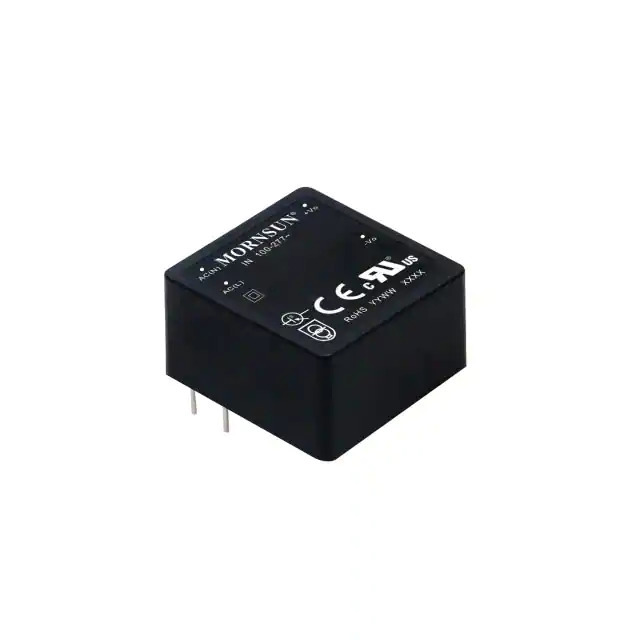

LD03-23B09R2 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

LD03-23B09R2

Part No LD03-23B09R2
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 9V 3W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mornsun America, LLC
Series 305RAC / LD-R2
Package Tray
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 100 ~ 430 VDC
Voltage - Output 1 9V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 333mA
Power (Watts) 3 W
Applications Household Appliances, ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 78%
Mounting Type Through Hole
Package / Case 5-DIP Module, 4 Leads
Size / Dimension 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
Approval Agency CB, CE, cURus
Line Regulation ±0.5%
Load Regulation ±1%
Base Product Number LD03-23
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1372687-LD03-23B09R2
Ultra Librarian 3D Model Ultra Librarian LD03-23B09R2 CAD Model

Description

The 1372687-LD03-23B09R2 is an enclosed AC-DC converter module from Mornsun America, LLC. It is designed for board mount applications in power supplies.

  • Manufacturer: Mornsun America, LLC
  • Product Name: 1372687-LD03-23B09R2
  • Power: 3W
  • Maximum Current Output: 333mA
  • Input Voltage Range: 85VAC to 305VAC and 100VDC to 430VDC
  • Output Voltage: 9V
  • Efficiency: 78%
  • Package: 5-DIP Module
  • Mounting Type: Through Hole
  • Application Standards: Household Appliances, ITE (Commercial)
  • Size: 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
