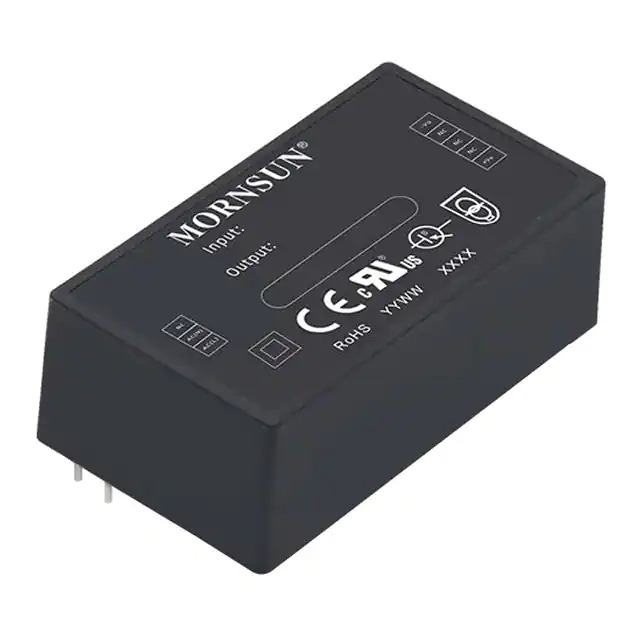

LD30-23B24R2 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

LD30-23B24R2

Part No LD30-23B24R2
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 31W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mornsun America, LLC
Series 305RAC / LD-R2
Package Tray
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 100 ~ 430 VDC
Voltage - Output 1 24V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 1.3A
Power (Watts) 31 W
Applications Household Appliances, ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 88%
Mounting Type Through Hole
Package / Case 4-DIP Module
Size / Dimension 2.74" L x 1.54" W x 0.94" H (69.5mm x 39.0mm x 24.0mm)
Approval Agency -
Standard Number 60335-1; 62368-1
Line Regulation ±0.5%
Load Regulation ±1%
Weight -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1372740-LD30-23B24R2
Ultra Librarian 3D Model Ultra Librarian LD30-23B24R2 CAD Model

Description

The LD30-23B24R2 is an enclosed AC-DC converter from Mornsun America, LLC.

  • Series: LD-R2
  • Package: 4-DIP Module
  • Operating Temperature: -40°C to 85°C (with derating)
  • Size: 2.74" L x 1.54" W x 0.94" H
  • Output: Adjustable
  • Maximum Output Current: 1.3A
  • Power Rating: 31W
  • Output Voltage: 24V (Single)
  • Applications: Household Appliances and ITE (Commercial)
  • Efficiency: 88%
  • Standards Compliance: 60335-1 and 62368-1
  • Features: Safe and Reliable Power Conversion
