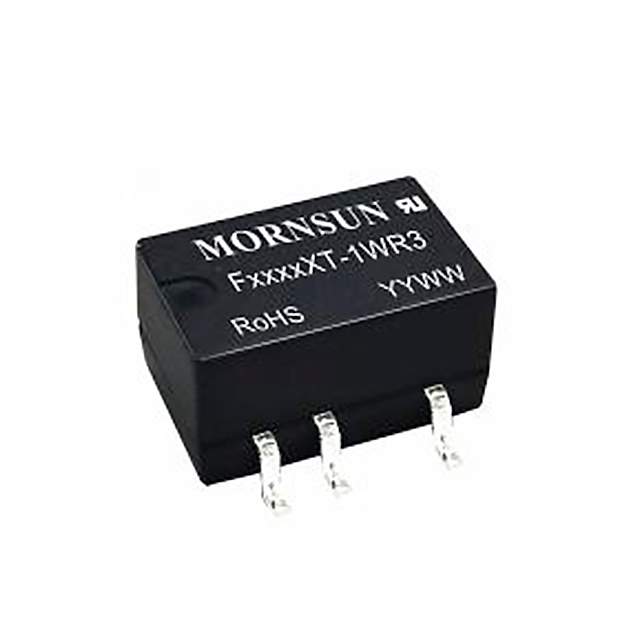

F0515XT-1WR3 Real Image
Same model may have multiple batches, images only for reference.

F0515XT-1WR3

Part No F0515XT-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 1W / Isolated Module DC DC Converter 1 Output 15V 67mA 4.5V - 5.5V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series F_XT-1WR3 (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Current - Output (Max) 67mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 83%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Approval Agency CB, CE, cURus
Base Product Number F0515XT
Standard Package 38
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1349797-F0515XT-1WR3
Ultra Librarian 3D Model Ultra Librarian F0515XT-1WR3 CAD Model

Description

The 1349797-F0515XT-1WR3 is an isolated module DC-DC converter from Mornsun America, LLC.

  • Series: F_XT-1WR3 (1W)
  • Size / Dimension: 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
  • Applications: ITE (Commercial)
  • Output: 1W
  • Voltage - Isolation: 3 kV
  • Number of Outputs: 1
  • Voltage - Input (Min): 4.5V
  • Voltage - Input (Max): 5.5V
  • Voltage - Output 1: 15V
  • Current - Output (Max): 67mA
  • Efficiency: 83%
  • Mounting Type: Surface Mount
  • Package / Case: 8-SMD Module, 5 Leads
  • Operating Temperature: -40°C ~ 105°C (With Derating)
  • Approvals: CB, CE, cURus
