Same model may have multiple batches, images only for reference.

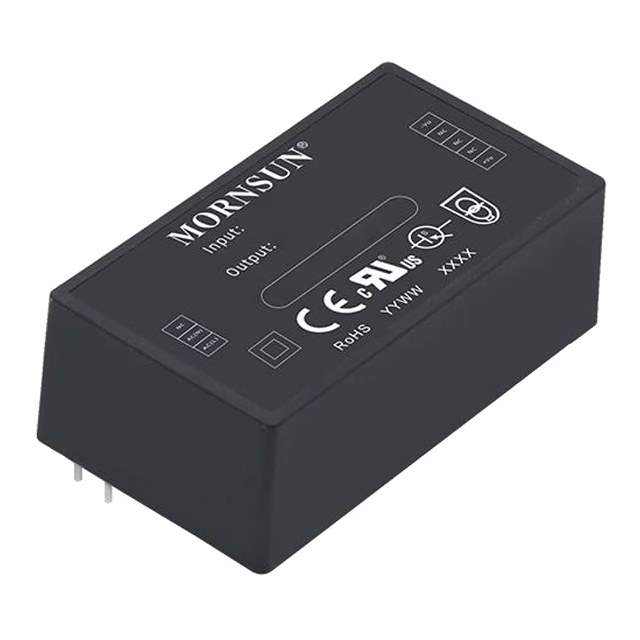

LD30-23B48R2 Real Image
Same model may have multiple batches, images only for reference.

LD30-23B48R2

Part No LD30-23B48R2
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 48V 30W / Enclosed AC DC Converters 1 Output 48V 630mA 85 ~ 305 VAC, 100 ~ 430 VDC Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mornsun America, LLC
Series 305RAC / LD-R2
Package Tray
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 100 ~ 430 VDC
Voltage - Output 1 48V
Current - Output (Max) 630mA
Power (Watts) 30 W
Applications Household Appliances, ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 4-DIP Module
Size / Dimension 2.74" L x 1.54" W x 0.94" H (69.5mm x 39.0mm x 24.0mm)
Standard Number 60335-1; 62368-1
Line Regulation ±0.5%
Load Regulation ±1%
Standard Package 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1341088-LD30-23B48R2
Ultra Librarian 3D Model Ultra Librarian LD30-23B48R2 CAD Model

Description

The 1341088-LD30-23B48R2 is an AC-DC converter module from Mornsun America, LLC.

  • Series: 305RAC / LD-R2
  • Size: 2.74" L x 1.54" W x 0.94" H (69.5mm x 39.0mm x 24.0mm)
  • Application: household appliances and ITE (Commercial)
  • Maximum Output Power: 30 W
  • Voltage Input: 85 ~ 305 VAC, 100 ~ 430 VDC
  • Output Type: single output
  • Maximum Output Current: 630mA
  • Voltage Output: 48V
  • Efficiency: 90%
  • Line Regulation: ±0.5%
  • Load Regulation: ±1%
  • Mounting Type: through-hole
  • Package / Case: 4-DIP Module
  • Operating Temperature: -40°C ~ 85°C (With Derating)
  • Approval: 60335-1; 62368-1
