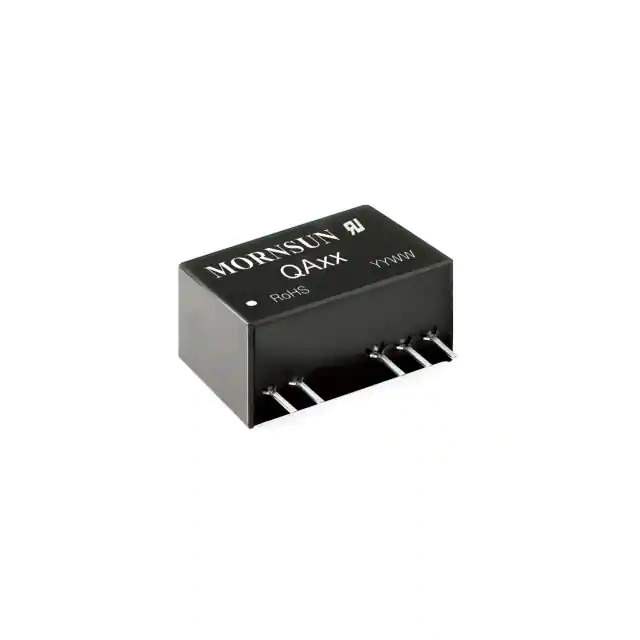

QA04 Real Image
Same model may have multiple batches, images only for reference.

QA04

Part No QA04
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER FOR IGBT DRIVER,
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series QA
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 15V
Voltage - Output 1 15V
Voltage - Output 2 -8V
Current - Output (Max) 100mA, 80mA
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
Approval Agency CB, CE, cURus
Standard Number 60950-1; 62368-1
Standard Package 25 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847969-QA04
Ultra Librarian 3D Model Ultra Librarian QA04 CAD Model

Description

The 847969-QA04 is an isolated module DC-DC converter from MORNSUN Science & Technology Ltd.

  • Series: QA series
  • Application: Power Supplies in board mount applications
  • Voltage Isolation: 3 kV
  • Outputs: Two
  • Maximum Output Current 1: 100mA
  • Maximum Output Current 2: 80mA
  • Input Voltage: 9V to 15V
  • Output Voltage 1: 15V
  • Output Voltage 2: -8V
  • Efficiency: 80%
  • Package: 7-SIP module, 5 leads
  • Application: ITE (Commercial)
  • Product Status: Active
  • Safety Standards: CB, CE, and cURus
  • Temperature Range: -40°C to 105°C
