Same model may have multiple batches, images only for reference.

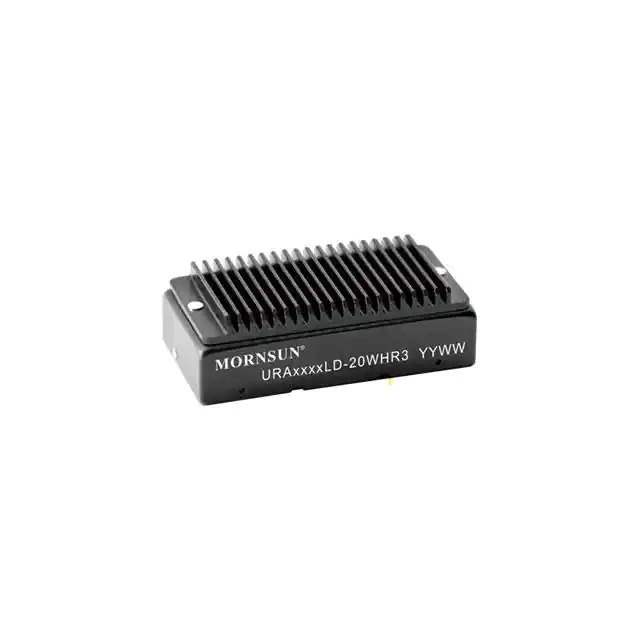

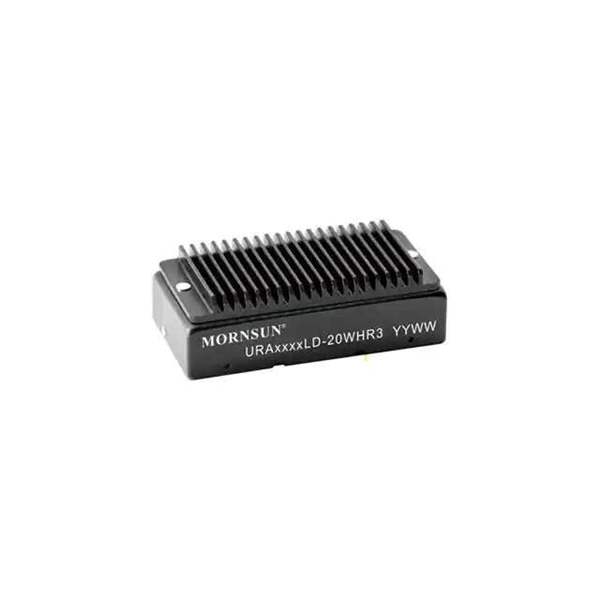

URA2409LD-20WHR3 Real Image
Same model may have multiple batches, images only for reference.

URA2409LD-20WHR3

Part No URA2409LD-20WHR3
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series URA_LD-20WR3 (20W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 1.111A, 1.111A
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial), Railway
Features Adjustable Output, Heat Sink, Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 88%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm)
Approval Agency CB, CE, cURus, EN, IEC, UKCA, UL
Standard Number 60950-1; 62368-1
Standard Package 19 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1103414-URA2409LD-20WHR3
Ultra Librarian 3D Model Ultra Librarian URA2409LD-20WHR3 CAD Model

Description

The URA_LD-20WR3 (20W) is a high-performance isolated module power supply suitable for various power supply applications.

  • Size: 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm)
  • Power Output: 20 W
  • Features: adjustable output, heat sink, and remote on/off functionality
  • Voltage Isolation: 1.5 kV
  • Outputs: two outputs with a maximum current output of 1.111A each
  • Input Voltage Range: 9V to 36V
  • Output Voltages: 9V and -9V
  • Efficiency: 88%
  • Mounting: through hole
  • Package: 6-DIP module
  • Manufacturer: MORNSUN Science & Technology Ltd.
  • Approvals: CB, CE, cURus, EN, IEC, UKCA, and UL
