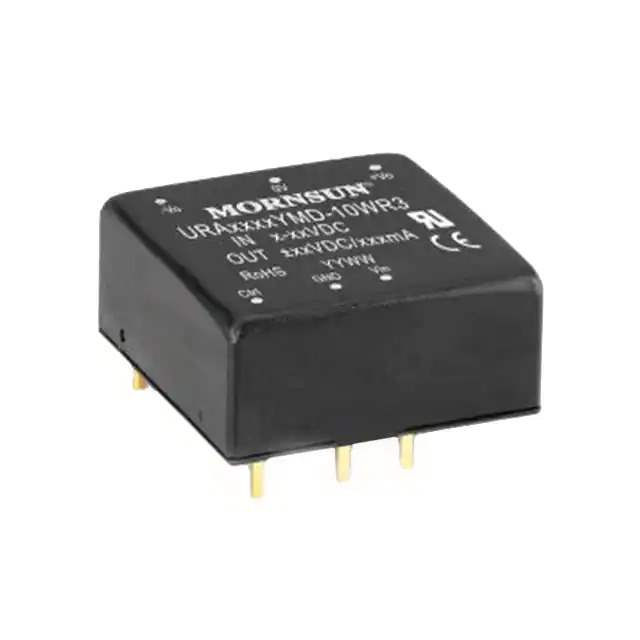

URA2415YMD-20WR3 Real Image
Same model may have multiple batches, images only for reference.

URA2415YMD-20WR3

Part No URA2415YMD-20WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 20W / Isolated Module DC DC Converter 2 Output 15V -15V 667mA, 667mA 9V - 36V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series URA2415YMD-20WR3 (20W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 667mA, 667mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C
Efficiency 90%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Approval Agency CE
Base Product Number URA2415
Standard Package 19 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 850221-URA2415YMD-20WR3
Ultra Librarian 3D Model Ultra Librarian URA2415YMD-20WR3 CAD Model

Description

The URA2415YMD-20WR3 is a 20W isolated DC-DC converter module designed for board mounting. URA2415YMD-20WR3 is manufactured by MORNSUN Science & Technology Ltd.

  • Power: 20W
  • Outputs: Two
  • Voltage Isolation: 1.5kV
  • Input Voltage: 9V to 36V
  • Output Voltages: 15V and -15V
  • Maximum Output Current: 667mA for both outputs
  • Application: ITE
  • Size: 1.00" L x 1.00" W x 0.46" H
  • Package: Tube
  • Efficiency: 90%
  • Operating Temperature: -40°C to 105°C
  • Status: Active
