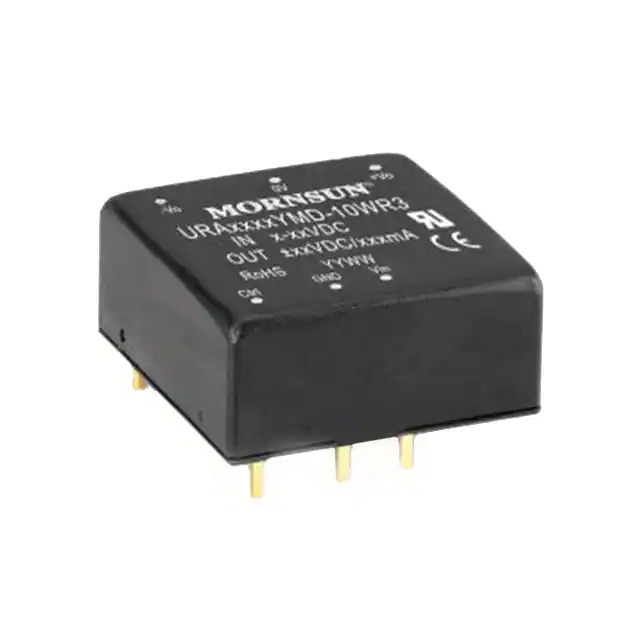

Same model may have multiple batches, images only for reference.
URA4815YMD-20WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

URA4815YMD-20WR3

Part No URA4815YMD-20WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 20W
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series URA4815YMD-20WR3 (20W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 667mA, 667mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C
Efficiency 90%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Supplier Device Package -
Control Features -
Approval Agency CE
Base Product Number URA4815
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1373044-URA4815YMD-20WR3
Ultra Librarian 3D Model Ultra Librarian URA4815YMD-20WR3 CAD Model

Description

The URA4815YMD-20WR3 is a 20W isolated module DC-DC converter from Mornsun America, LLC.

  • Application: Power supply applications in ITE (Commercial) devices
  • Temperature Range: -40°C to 105°C
  • Maximum Input Voltage: 75V
  • Maximum Output Current: 667mA
  • Output Voltage: 15V
  • Package: Through-Hole 6-DIP module
  • Voltage Isolation: 1.5 kV
  • Approval: CE
  • Efficiency: 90%
  • Size: 1.00" L x 1.00" W x 0.46" H
  • Active Status: Active product in the URA4815YMD-20WR3 series
