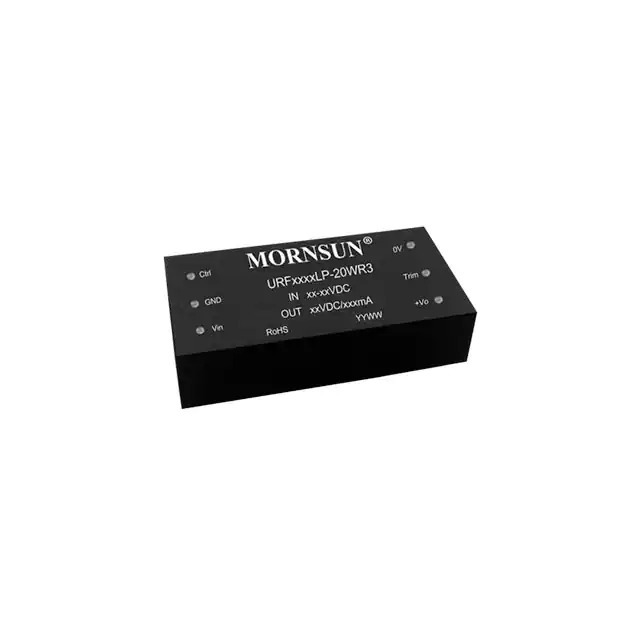

URF2424LP-20WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

URF2424LP-20WR3

Part No URF2424LP-20WR3
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series URF_LP-20WR3 (20W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 833mA
Power (Watts) 20 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module, 5 Leads
Size / Dimension 2.03" L x 1.04" W x 0.47" H (51.5mm x 26.5mm x 12.0mm)
Supplier Device Package -
Control Features -
Approval Agency CE, cURus, EN, IEC, UKCA, UL
Standard Number 60950-1; 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1373051-URF2424LP-20WR3
Ultra Librarian 3D Model Ultra Librarian URF2424LP-20WR3 CAD Model

Description

The URF_LP-20WR3 is a 20W isolated module DC-DC converter manufactured by Mornsun America, LLC.

  • Features: Adjustable output and remote on/off capabilities
  • Temperature Range: -40°C to 85°C with derating
  • Maximum Output Current: 833mA
  • Maximum Input Voltage: 36V
  • Application: ITE (Commercial) applications
  • Package: 6-DIP Module, 5 Leads package
  • Voltage Isolation: 3kV
  • Efficiency: 89%
  • Approvals: CE, cURus, EN, IEC, UKCA, and UL
  • Size: 2.03" L x 1.04" W x 0.47" H (51.5mm x 26.5mm x 12.0mm)
