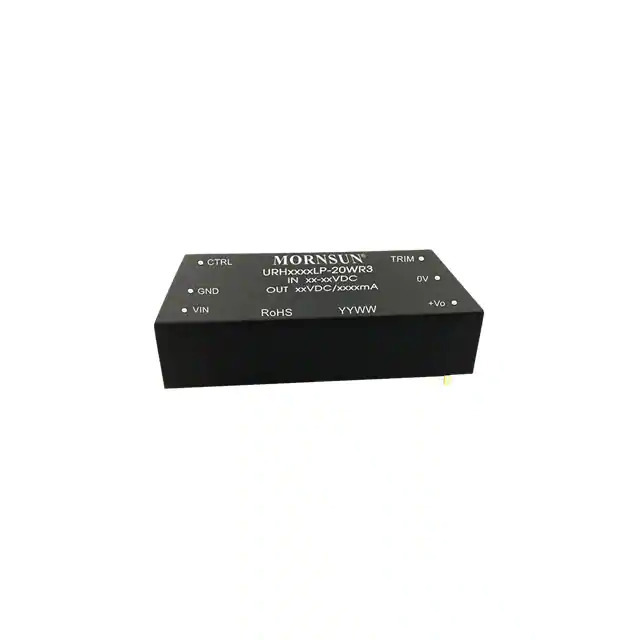

URH2424LP-20WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

URH2424LP-20WR3

Part No URH2424LP-20WR3
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series URH_LP-20WR3 (20W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 833mA
Power (Watts) 20 W
Voltage - Isolation 5 kV
Applications ITE (Commercial), Medical
Features Adjustable Output
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 2.03" L x 1.04" W x 0.47" H (51.5mm x 26.5mm x 12.0mm)
Supplier Device Package -
Control Features -
Approval Agency CE, EN, UKCA
Standard Number 60601-1; 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1373087-URH2424LP-20WR3
Ultra Librarian 3D Model Ultra Librarian URH2424LP-20WR3 CAD Model

Description

The URH2424LP-20WR3 is a power supply module designed for board mount applications.

  • Series: URH_LP-20WR3
  • Manufacturer: Mornsun America, LLC
  • Features: Adjustable Output
  • Size: 2.03" L x 1.04" W x 0.47" H (51.5mm x 26.5mm x 12.0mm)
  • Applications: ITE (Commercial), Medical
  • Operating Temperature: -40°C ~ 85°C (with derating)
  • Efficiency: 89%
  • Output Current: 833mA (Max)
  • Power Rating: 20W
  • Input Voltage: 9V ~ 36V
  • Output Voltage: 24V
  • Mounting: Through-Hole
  • Approvals: CE, EN, UKCA
  • Voltage Isolation: 5kV
  • Standard Numbers: 60601-1, 62368-1
