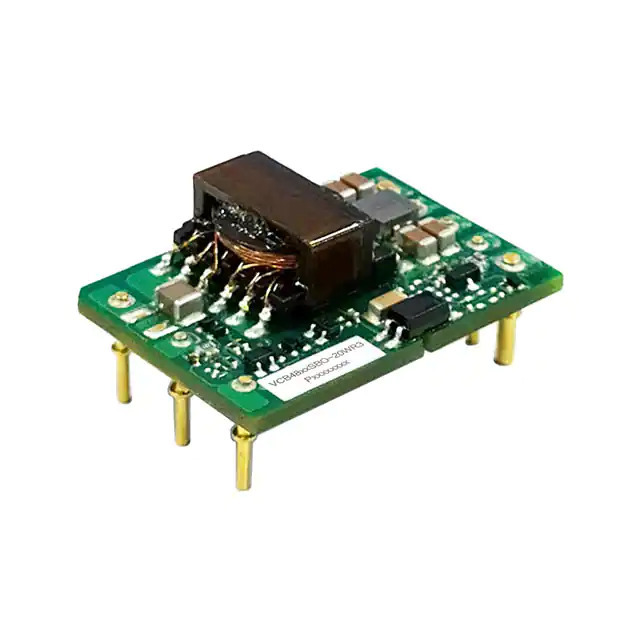

VCB4815SBO-20WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

VCB4815SBO-20WR3

Part No VCB4815SBO-20WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER, 20W, 15V
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series VCB48_SBO-20WR3 (20W)
Package Tray
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 1.333A
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Adjustable Output, Remote Sense
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case Sixteenth Brick
Size / Dimension 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm)
Supplier Device Package Sixteenth Brick
Control Features -
Approval Agency CE
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372863-VCB4815SBO-20WR3
Ultra Librarian 3D Model Ultra Librarian VCB4815SBO-20WR3 CAD Model

Description

The VCB4815SBO-20WR3 is an isolated module DC-DC converter manufactured by Mornsun America, LLC.

  • Application: Power Supplies
  • Mounting Type: Through Hole
  • Power (Watts): 20W
  • Package / Case: Sixteenth Brick
  • Operating Temperature: -40°C to 85°C
  • Efficiency: 89%
  • Voltage - Isolation: 1.5kV
  • Size / Dimension: 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm)
  • Approval: CE
  • Series: VCB48_SBO-20WR3 (20W)
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Active Status: Active
