Same model may have multiple batches, images only for reference.

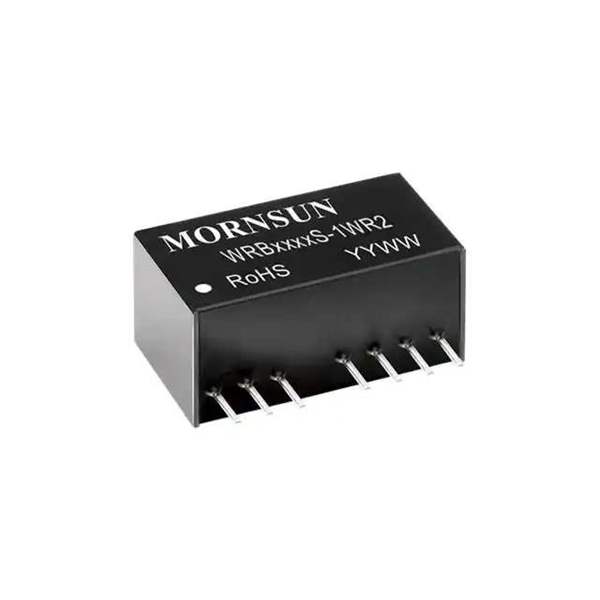

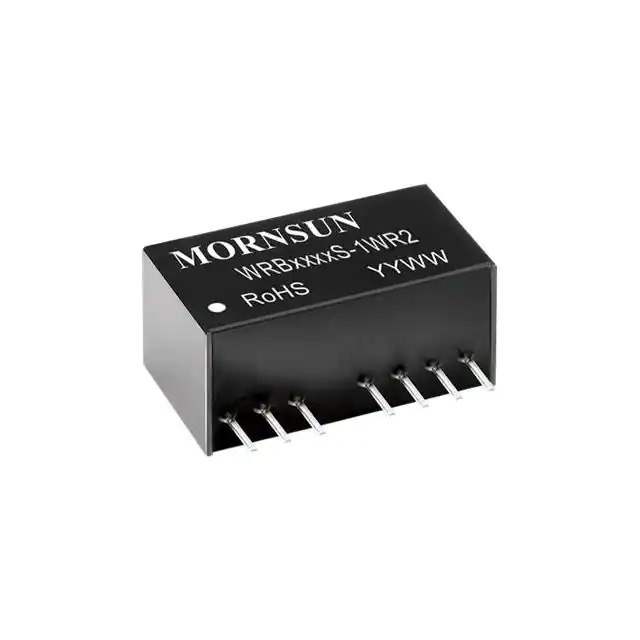

WRB2405S-1WR2 Real Image
Same model may have multiple batches, images only for reference.

WRB2405S-1WR2

Part No WRB2405S-1WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series WRB_S-1WR2 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C
Efficiency 77%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Approval Agency CE
Standard Number 62368-1
Standard Package 22 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 697855-WRB2405S-1WR2
Ultra Librarian 3D Model Ultra Librarian WRB2405S-1WR2 CAD Model

Description

The WRB2405S-1WR2 is a 1W isolated module DC-DC converter suitable for power supply applications. Bold the product name (e.g., WRB2405S-1WR2) and manufacturer (e.g., MORNSUN Science & Technology Ltd.).

  • Remote On/Off: Yes
  • Size: 0.87" L x 0.37" W x 0.47" H
  • Voltage Isolation: 1.5 kV
  • Output Voltage: 5V
  • Maximum Output Current: 200mA
  • Input Voltage Range: 18V to 36V
  • Efficiency: 77%
  • Mounting Type: Through Hole
  • Package: 8-SIP module, 7 leads
  • Active Status: Active
  • Approval: CE
