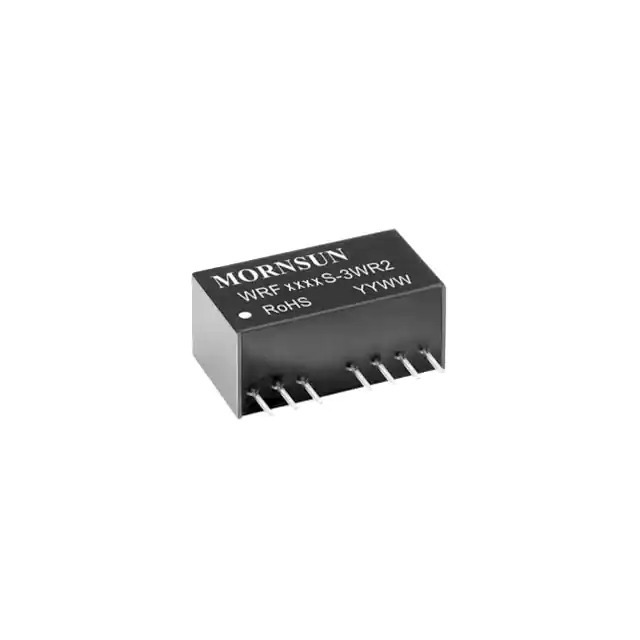

WRF1203S-3WR2 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

WRF1203S-3WR2

Part No WRF1203S-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series WRF_S - 3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 3.3V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 758mA
Power (Watts) 2.5 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 75%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Supplier Device Package -
Control Features -
Approval Agency CE
Standard Number 60950-1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1373065-WRF1203S-3WR2
Ultra Librarian 3D Model Ultra Librarian WRF1203S-3WR2 CAD Model

Description

The WRF1203S-3WR2 is a power supply module designed by Mornsun America, LLC.

  • Series: WRF_S-3WR2
  • Package: 8-SIP module with 7 leads
  • Application: ITE (Commercial)
  • Feature: Remote on/off control
  • Maximum Output Current: 758mA
  • Power Rating: 2.5W
  • Input Voltage Range: 9V to 18V
  • Output Voltage: 3.3V
  • Efficiency: 75%
  • Approval: CE
  • Voltage Isolation: 3kV
  • Size: 0.87" L x 0.37" W x 0.47" H
  • Temperature Range: -40°C to 85°C with derating
  • Product Status: Active
