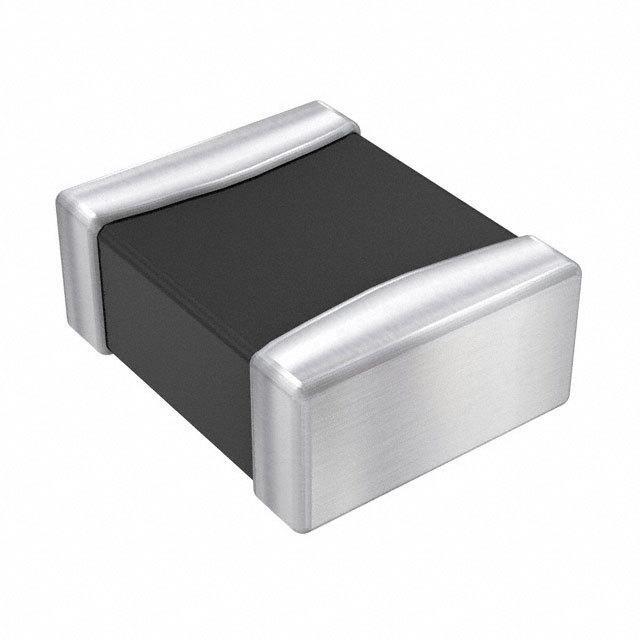

1277AS-H-4R7M=P2 Murata Electronics North America
Same model may have multiple batches, images only for reference.

1277AS-H-4R7M=P2

Part No 1277AS-H-4R7M=P2
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor Power Shielded Multi-Layer 4.7uH 20% 1MHz Metal 1.4A 0.18Ohm DCR 1210 T/R / FIXED IND 4.7UH 1.4A 180 MOHM
Datasheet
1277AS-H-4R7M=P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Powdered Iron
Inductance 4.7μH
Tolerance ±20%
Current Rating 1.4A
Current - Saturation 1.8A
DC Resistance (DCR) 180 mOhm Max
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 1001344-1277AS-H-4R7M=P2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name DFE322512C
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 1277AS-H-4R7M=P2 CAD Model

Description

The 1001344-1277AS-H-4R7M=P2 is a wirewound inductor with a current rating of 1.4A and an inductance of 4.7μH from Murata Electronics North America.

  • Current Rating: 1.4A
  • Inductance: 4.7μH
  • Height: 0.047" (1.20mm)
  • Mounting: Surface-mounting
  • Core Material: Powdered iron
  • Current Saturation: 1.8A
  • Tolerance: ±20%
  • DC Resistance (DCR): 180 mOhm Max
  • Temperature Range: -40°C to 85°C
  • Product Status: Active
