Same model may have multiple batches, images only for reference.

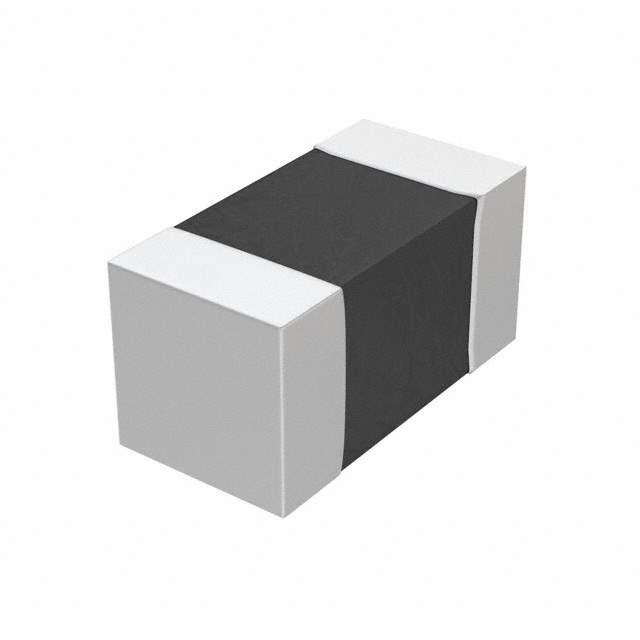

BLM02PX100SN1D Real Image
Same model may have multiple batches, images only for reference.

BLM02PX100SN1D

Part No BLM02PX100SN1D
Manufacturer Murata Electronics North America
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 10 OHM 01005 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Electronics
Packaging Reel
Filter Type Signal Line
Number of Lines 1
Impedance at Frequency 10 Ohms at 100MHz
Current Rating (Maximum) 1.1A
DC Resistance (DCR) (Maximum) 50mOhm
Temperature Range - Operating -55°C ~ 125°C
Manufacturer Package 1005
Mounting Style SMD
Height (Maximum) 0.009" (0.22mm)
Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Manufacturer Pack Quantity 20,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801400-BLM02PX100SN1D
Ultra Librarian 3D Model Ultra Librarian BLM02PX100SN1D CAD Model

Description

The 801400-BLM02PX100SN1D is a signal line filter from Murata Electronics.

  • Mounting Style: SMD
  • Maximum Current Rating: 1.1A
  • DC Resistance (DCR): 50mOhm
  • Temperature Range: -55°C to 125°C
  • Dimensions: 0.016" L x 0.008" W (0.40mm x 0.20mm)
  • Manufacturer Package: 1005
  • Height: 0.009" (0.22mm)
  • Impedance @ Frequency: 10 Ohms @ 100MHz
