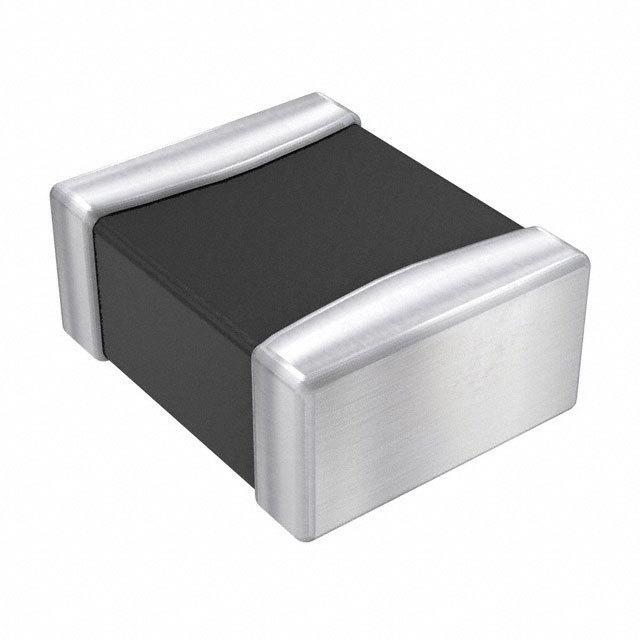

DFE252010P-4R7M=P2 Murata Electronics North America
Same model may have multiple batches, images only for reference.

DFE252010P-4R7M=P2

Part No DFE252010P-4R7M=P2
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.7A 270 MOHM / Inductor Power Shielded Wirewound 4.7uH 20% 1MHz Metal 1.1A 0.27Ohm DCR 1008 T/R
Datasheet
DFE252010P-4R7M=P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series DFE252010P
Packaging Reel package
Type Wirewound
Material - Core Powdered Iron
Inductance 4.7μH
Tolerance ±20%
Current Rating 1.7A
Shielding Shielded
DC Resistance (DCR) 270 mOhm Max
Operating Temperature Range -40°C ~ 125°C
Test Frequency 1MHz
Mounting SMD
Package 1008 (2520 Metric)
Manufacturer Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 772604-DFE252010P-4R7M=P2
Popularity Medium
Supply and Demand Status Limited
Family Name DFE252010P
Introduction Date February 21, 2016
ECCN EAR99
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian DFE252010P-4R7M=P2 CAD Model

Description

The Murata Electronics North America DFE252010P-4R7M=P2 is a wirewound shielded inductor with an inductance of 4.7μH and a current rating of 1.7A.

  • Inductance: 4.7μH
  • Current Rating: 1.7A
  • Tolerance: ±20%
  • DC Resistance (DCR): 270 mOhm Max
  • Material: Powdered Iron
  • Operating Temperature Range: -40°C ~ 125°C
  • Package: 1008 (2520 Metric)
  • Mounting: Surface Mount (SMD)
  • Series: DFE252010P
  • Height: 0.039" (1.00mm)
  • Packaging: Reel
  • Estimated EOL Date: 2030
