Same model may have multiple batches, images only for reference.

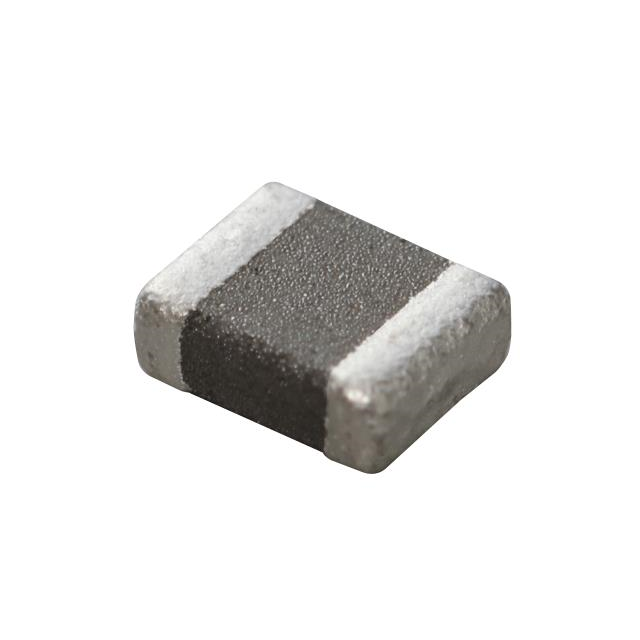

DFE2HCAH1R0MJ0L Real Image
Same model may have multiple batches, images only for reference.

DFE2HCAH1R0MJ0L

Part No DFE2HCAH1R0MJ0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1UH 3A 50 MOHM SMD / 1 µH Shielded Drum Core, Wirewound Inductor 3 A 50mOhm Max 1008 (2520 Metric)
Datasheet
DFE2HCAH1R0MJ0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics
Series DFE2H
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 3.4A
Shielding Shielded
DC Resistance (DCR) 50mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number DFE2HCAH
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1351762-DFE2HCAH1R0MJ0L
Ultra Librarian 3D Model Ultra Librarian DFE2HCAH1R0MJ0L CAD Model

Description

The Murata Electronics DFE2HCAH1R0MJ0L is a shielded fixed inductor with a drum core and wirewound type.

  • Series: DFE2HCA
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Inductance: 1 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 50mOhm Max
  • Current Rating: 3 A
  • Operating Temperature: -40°C ~ 150°C
  • Ratings: AEC-Q200
  • Mounting Type: Surface Mount
  • Core Material: Metal
  • Height - Seated (Max): 0.047" (1.20mm)
  • Standard Package: 3,000
