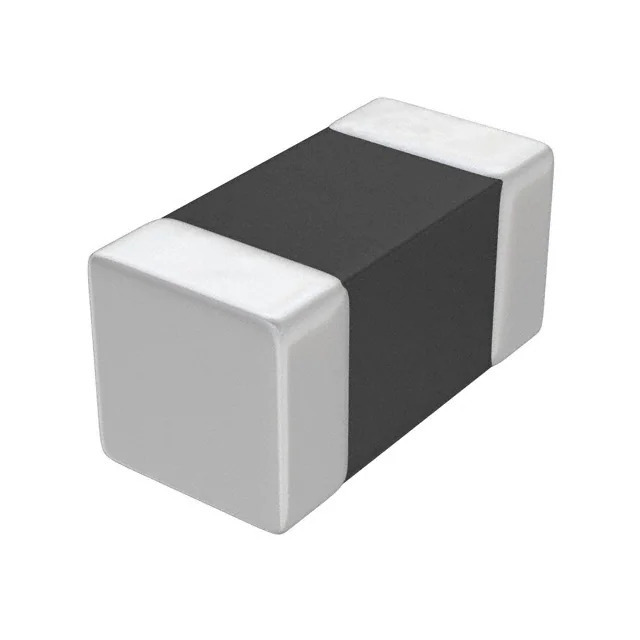

LQB15NNR56J10D

Name: LQB15NNR56J10D
Brand: Murata Electronics North America
SKU: 1369528
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	LQB15NNR56J10D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 560NH 300MA 912.5 MOHM
Datasheet	LQB15NNR56J10D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Murata Electronics
Series	LQB15
Package	Tape & Reel
Product Status	Last Time Buy
Type	Multilayer
Material - Core	Ferrite
Inductance	560 nH
Tolerance	±5%
Current Rating (Amps)	300 mA
Current - Saturation (Isat)	-
Shielding	Shielded
DC Resistance (DCR)	912.5mOhm Max
Q @ Freq	10 @ 25MHz
Frequency - Self Resonant	80MHz
Ratings	-
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	25 MHz
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.022" (0.55mm)
Base Product Number	LQB15NN
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1369528-LQB15NNR56J10D
Ultra Librarian 3D Model	Ultra Librarian LQB15NNR56J10D CAD Model

Alternative Products

Description

The LQB15NNR56J10D is a fixed inductor from Murata Electronics. It is a part of the LQB15 series and comes in a 0402 (1005 Metric) package.

Inductor Type: Fixed
Series: LQB15
Package / Case: 0402 (1005 Metric)
Inductance: 560 nH
Current Rating: 300 mA
Tolerance: ±5%
Shielding: Shielded
Mounting Type: Surface Mount
Size / Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
Seated Height: 0.022" (0.55mm)
Temperature Range: -55°C to 125°C
REACH: Unaffected
Core Material: Ferrite
