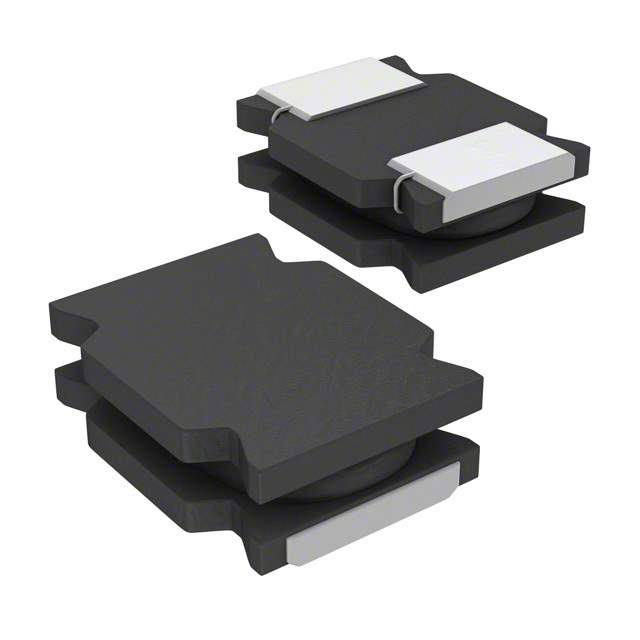

LQH2MCN150M52L Real Image
Same model may have multiple batches, images only for reference.

LQH2MCN150M52L

Part No LQH2MCN150M52L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 15UH 150MA 3.5 OHM SMD
Datasheet
LQH2MCN150M52L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±20%
Current Rating 150mA
DC Resistance (DCR) 4.55 Ohm Max
Frequency - Self Resonant 30MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 0806 (2016 Metric)
Height - Seated (Max) 0.037" (0.95mm)
Win Source Part Number 072009-LQH2MCN150M52L
Ultra Librarian 3D Model Ultra Librarian LQH2MCN150M52L CAD Model

Description

The Murata Electronics North America wirewound inductor with a current rating of 150mA and inductance of 15μH is an ideal component for various electronic applications.

  • Core Material: Ferrite
  • Tolerance: ±20%
  • Self-Resonant Frequency: 30MHz
  • Test Frequency: 1MHz
  • DC Resistance: 4.55 Ohm Max
  • Operating Temperature Range: -40°C to 85°C
  • Height: 0.037" (0.95mm)
  • Mounting Technology: SMD (SMT)
  • Categories: Inductors, Coils, Chokes
  • Status: Active
